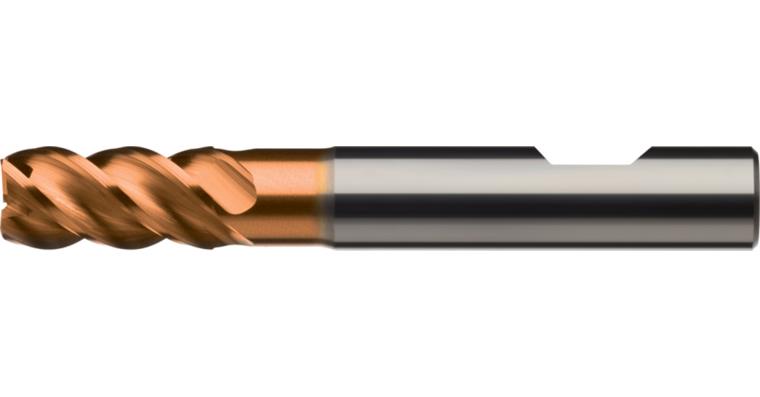

ATORN solid carbide end mill T4 HB, 10.0 x 20 x 30 x 72 mm, coated

ATORN solid carbide end mill T4 HB, 10.0 x 20 x 30 x 72 mm, coated

ATORN solid carbide end mill T4 HB, 10.0 x 20 x 30 x 72 mm, coated
Item no: 1016738 106

Online price:

Available for immediate delivery

Application
End mill for universal machining of non-ferrous metals.

Execution
  • solid carbide ultra-fine grain
  • straight shank in accordance with DIN 6535 HB
  • with edge protection chamfer
  • defined edge rounding of the cutting edge
  • centre cutting
  • with clearance
  • ZrCN ULTRA-N coated


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: W
Number of cutting edges (Z): 4 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 10 mm
Cutting edge length: 20 mm
Clearance length: 30 mm
Length: 72 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 9,6 mm
Shank diameter: 10 mm
fz aluminium: 0,1 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263455

EAN no.: 4050293341720

Product Datasheet Datasheet cutting values
