ATORN hand tap set HSS D/C 2181 0° MF10 1.25 mm ISO2 D/S 3xD

ATORN hand tap set HSS D/C 2181 0° MF10 1.25 mm ISO2 D/S 3xD

ATORN hand tap set HSS D/C 2181 0° MF10 1.25 mm ISO2 D/S 3xD
Item no: 1003140 152

Online price:

Available in 4-6 working days.

Application
For manually tapping fine metric threads in through holes and blind holes in the steel, NF metal and (cast) material groups up to a strength of 1000 N/mm² in single part production.

Execution
Set consisting of taper tap (form A) and third tap (form C)

Advantage
Long service life and high level of process reliability thanks to innovative cutting geometry and universal application for maximum flexibility in use


Brand: ATORN
Material to be processed: Universal use
Design: Set
Thread type: Metric fine thread
Thread type x nominal diameter: MF10
Core hole diameter: 8,8 mm
Pitch: 1,25 mm
Cutting material: HSS
Surface: Uncoated
Shank square: 5,5 mm
Hole type: Clearance/blind hole ≤ 3xD
Length: 70 mm
Tolerance of screw taps: ISO 2 (6H)
Shank diameter: 7 mm
Cutting speed (steel 1000) suitability (Eignung Stahl 1000 N/mm2): 1
Cutting speed (steel 1300) suitability (Eignung Stahl 1300 N/mm2): 3
Overall stainless steel suitability (Eignung Edelstahl ): 3
fitness not iron total (Eignung NE-Metalle): 1
Cutting speed (cast) suitability (Eignung Guss): 2
fitness Titan/Nickel/Super total (Eignung Sonderlegierung): 3
fitness stainless steel total (Eignung Hartbearbeitung): 3
DIN: 2181

ATORN-No.: 10470569

EAN no.: 4050293015980

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap set HSS D/C 2181 0° MF12 1.25 mm ISO2 D/S 3xD
  •
    ATORN screw tap HSSE‑PM B 376 0° M12 1.75 mm ISO2 x D 3xD CNC S
  •
    ATORN screw tap HSSE TIAlN C 376 0° M12 1.75 mm ISO2 x D/S 3xD CNC K
  •
    ATORN screw tap HSSE V3 C 45° M2.5 0.45 ISO2 2.5xD CNC UNI
  •
    ATORN machine tap, HSSE vaporised UNF 5/8-18, through hole
  •
    Blind hole screw tap G DIN 5156 35° shape C 2.5xD HSS-E 3/4 inch
  •
    Keyway cutter cyl./1835 B DIN 850 D, 10 cutting edges HSS-E 28.5 x 6 mm
  •
    ATORN SC roughing cutter IC T3 HA, 20.0 x 41 x 52 x 104mm, coated
  •
    ATORN SC multi-tooth mill diameter 20.0 x 38 x 58 x 100 mm T=8 RT52
  •
    ATORN solid carbide multi-tooth mill diameter 12.0 x 25 x 37 x 75 mm T=6 RT65
  •
    ATORN insert holder AMA-R 25-75-3 T13 axial grooving 75-100 mm W=3 mm
  •

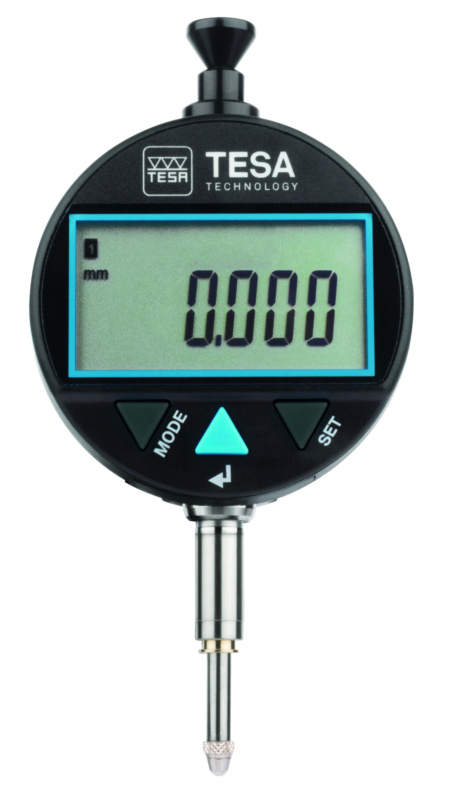

    DIALTRONIC EASY digital dial gauge 12.5 mm, 0.001 mm, dia. 60 mm, IP51
