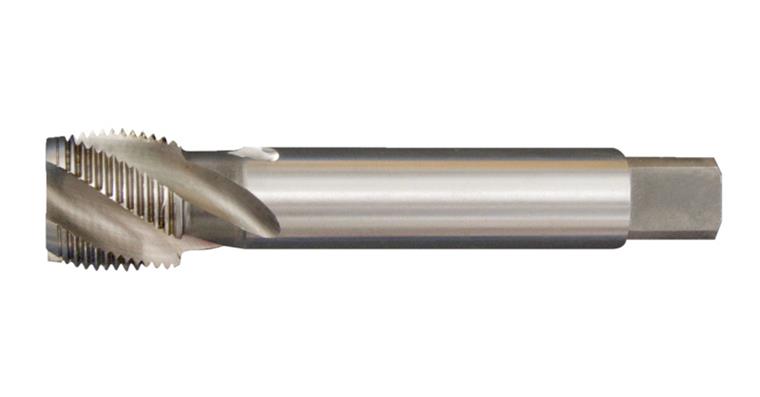

Blind hole screw tap G DIN 5156 35° shape C 2.5xD HSS-E 3/4 inch

Blind hole screw tap G DIN 5156 35° shape C 2.5xD HSS-E 3/4 inch

Blind hole screw tap G DIN 5156 35° shape C 2.5xD HSS-E 3/4 inch
Item no: 1014603 106

Online price:

Still in stock: 2

Application
- Whitworth pipe thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • DIN 5156-DIN ISO 228
  • Right-hand spiral flute approx. 35°
  • DIN chamfer shape C (2-3 turns)

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter in inches: G 3/4 in
Max. thread depth: 2.5xD
Thread dimension: G 3/4 inch - 14
Number of thread starts per inch: 14
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 140 mm
Cutting edge length: 28 mm
Core hole diameter: 24,50 mm
Shank diameter: 20 mm
Shank square: 16 mm
Thread type: Pipe thread
Twist angle: 35° (right)
DIN: 5156
Coolant supply: External
Nominal diameter in inches: 3/4 in
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
