NC spotting drill, solid carbide 142°, diameter 12 mm x 102 mm HB shaft

NC spotting drill, solid carbide 142°, diameter 12 mm x 102 mm HB shaft

NC spotting drill, solid carbide 142°, diameter 12 mm x 102 mm HB shaft
Item no: 1010907 112

Online price:

Available for immediate delivery

Application
For 142° spot drilling for the following twist drills on CNC machines.

Execution
Spiral-fluted design

Advantage
  • Short design with precise point geometry and chisel edge ensure form-true and process-reliable spot drilling
  • The follow-on tool does not run off centre
  • Precise gauge thanks to special point thinning of the chisel edge

Notes
Diameter less than 6 mm with HA shaft

Brand: ATORN
Material to be processed: Universal use
Angle of the tip: 142 Degree
Cutting material: SC
Surface: Uncoated
Tool holding device: HB parallel shank
Cutting edge diameter: 12 mm
Cutting edge length: 30 mm
Length: 102 mm
f steel 1300: 0,18 mm/r

ATORN-No.: 10916159

EAN no.: 4050293695748

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • NC spotting drill, solid carbide 142° TiAlSiN, diameter 12 mm x 102 mm HB shaft
  •
    NC spotting drill, sol. carbide 142° TiAlSiN, dia. 20 mm x 200 mm HB shaft, long
  •
    ATORN NC spotting drill, extra long, HSSE 90°, uncoated, 20.0 mm x 200 mm HA
  •
    NC spotting drill, solid carbide 120°, diameter 12 mm x 102 mm HB shaft
  •

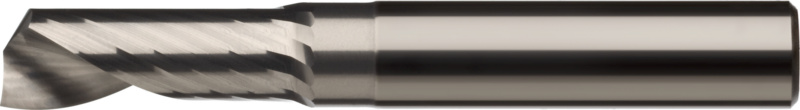

    ATORN solid carbide single-tooth milling cutter HA, 6.0 x 20 x 28 x 64 mm, plain
  •

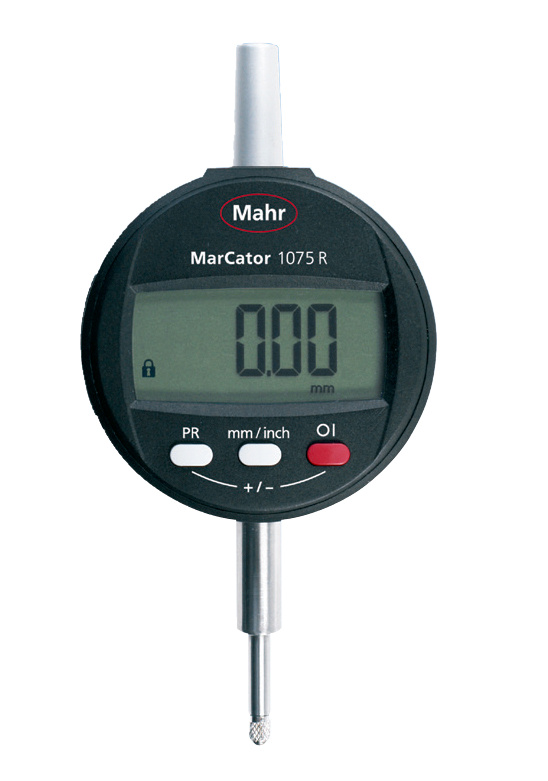

    Digital dial gauge measuring range 12.5 mm reading 0.01 mm IP 42
  •
