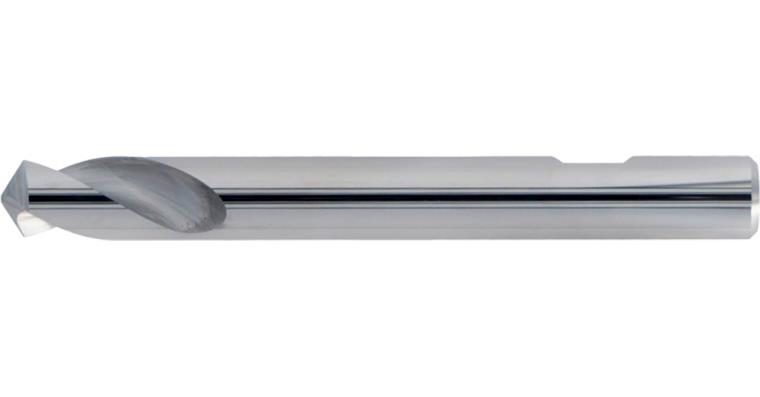

NC spotting drill, solid carbide 120°, diameter 12 mm x 102 mm HB shaft

NC spotting drill, solid carbide 120°, diameter 12 mm x 102 mm HB shaft

NC spotting drill, solid carbide 120°, diameter 12 mm x 102 mm HB shaft
Item no: 1010906 312

Online price:

Still in stock: 5

Application
For 120° spot drilling for the following twist drills on CNC machines.

Execution
Spiral-fluted design

Advantage
  • Short design with precise point geometry and chisel edge ensure form-true and process-reliable spot drilling
  • The follow-on tool does not run off centre
  • Precise gauge thanks to special point thinning of the chisel edge

Notes
Diameter less than 6 mm with HA shaft

Brand: ATORN
Material to be processed: Universal use
Angle of the tip: 120 Degree
Cutting material: SC
Surface: Uncoated
Tool holding device: HB parallel shank
Cutting edge diameter: 12 mm
Cutting edge length: 30 mm
Length: 102 mm
f steel 1300: 0,18 mm/r

ATORN-No.: 10916129

EAN no.: 4050293695441

Product Datasheet Datasheet cutting values
