Hand tap DIN 2181 F third tap HSS MF 24x1.5

Hand tap DIN 2181 F third tap HSS MF 24x1.5

Hand tap DIN 2181 F third tap HSS MF 24x1.5
Item no: 1014054 176

Online price:

Still in stock: 4

Application
For production of standard ISO DIN 13 metric threads. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Third tap with chamfer shape C without ring
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter: MF24
Pitch: 1,5 mm
Core hole diameter: 22,50 mm
Length: 90 mm
Shank diameter: 18 mm
Shank square: 14,5 mm
Colour ring system: Steels
Design: Third tap
Shank style: Cylindrical with square drive
Thread type: Metric fine thread
Lead angle shape: C
DIN: 2181
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance/blind hole ≤ 2.5xD
Surface: Uncoated
Tolerance of screw taps: 6H
Nominal diameter: 24 mm
Twist angle: 0°

EAN no.: 4024496018949

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN solid carbide square end mill T=3 short 3.50 mm shank DIN 6535 HB
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 3.94 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 4.65 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 5.64 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 10.9 mm
  •
    Hand tap DIN 2181 F third tap HSS MF 3x0.35
    31,49 €
  • Hand tap DIN 2181 F third tap HSS MF 4x0.5
    14,27 €
  • ATORN RockTec PRO mini end mill, long neck 2x3x18x55 mm T=2 HA
    54,56 €
  • Measuring and test pin holder for plug gauges, clamping range 9.51-12.00 mm
    42,21 €

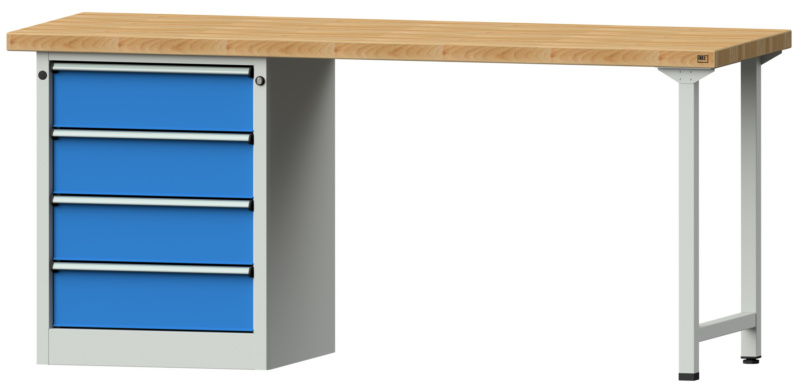

  • KOMBIWERKBANK Buche-Massivplatte 4 Schubladen 2000X700x900 MM RAL 7035/5012
  •
