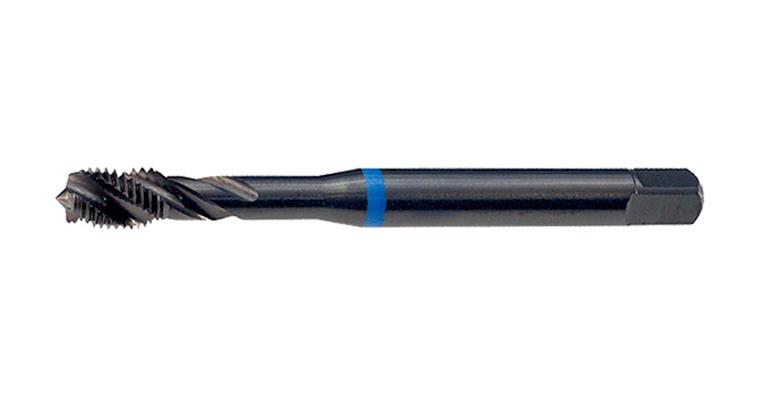

ATORN screw tap HSSE C DIN 376 40° UNF 5/8 in 18 2B S 2.5xD CNC P

ATORN screw tap HSSE C DIN 376 40° UNF 5/8 in 18 2B S 2.5xD CNC P

ATORN screw tap HSSE C DIN 376 40° UNF 5/8 in 18 2B S 2.5xD CNC P
Item no: 1014575 208

Online price:

Available in 6-8 working days.

Application
For producing UNF (Unified Fine) threads on CNC machines or conventional machines in blind holes in the steel, (stainless steel), non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm².

Execution
With protruding shank

Advantage
  • Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.
  • High-quality, torsion-resistant HSSE cutting material and cutting edge finish for very high service life requirements.
  • Universal use for maximum flexibility in use.


Brand: ATORN
Thread type: UNF
Thread type x nominal diameter in inches: UNF 5/8 in
Tolerance of screw taps (Tol.): 2B
Number of thread starts per inch: 18
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 100 mm
Cutting material: HSSE
Surface: Vaporised
Twist angle: 40° (right)
DIN: 376 similar
Shank diameter: 12 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 14,5 mm
Type: P MAX 1000
Coolant supply: External
Shank square: 9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10479533

EAN no.: 4050293190458

Product Datasheet Datasheet cutting values
