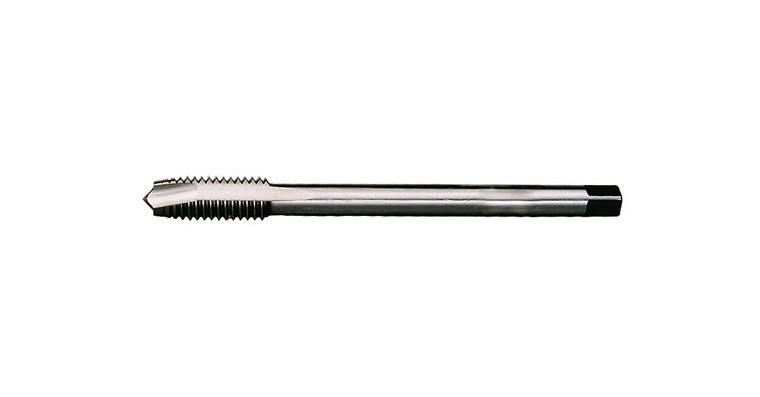

Through hole screw tap M DIN 376 shape B 1.5xD HSS-E M10

Through hole screw tap M DIN 376 shape B 1.5xD HSS-E M10

Through hole screw tap M DIN 376 shape B 1.5xD HSS-E M10
Item no: 1014305 115

Online price:

Available for immediate delivery

Application
Metric thread
Through holes
Max. drilling depth 1.5xD
Steels up to 700 N/mm2

Execution
Spiral point

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M10
Max. thread depth: 1.5xD
Thread dimension: M10
Pitch: 1,5 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 100 mm
Cutting edge length: 20 mm
Core hole diameter: 8,50 mm
Shank diameter: 7 mm
Shank square: 5,5 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 376
Coolant supply: External
Nominal diameter: 10 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
