ATORN solid carbide HPC end mill Z4 HA shaft diameter 3.0 x 6 x 57 mm

ATORN solid carbide HPC end mill Z4 HA shaft diameter 3.0 x 6 x 57 mm

ATORN solid carbide HPC end mill Z4 HA shaft diameter 3.0 x 6 x 57 mm
Item no: 1016892 101

Online price:

Still in stock: 7

Application
HPC end mill with variable pitch and variable twist for roughing and finishing non-ferrous metals with maximum results.

Execution
  • solid carbide ultra-fine grain
  • straight shank in line with DIN 6535 HB
  • ULTRA-N PRO-coated
  • with edge protection chamfer
  • Defined edge rounding of the cutting edge
  • centre cutting
  • with clearance
  • Polish sanding

Advantage
  • Ultra-smooth coating thickness
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 4 PCS
Twist angle: 43° | 47°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 3 mm
Cutting edge length: 6 mm
Clearance length: 10 mm
Length: 57 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 2,9 mm
Shank diameter: 6 mm
fz aluminium: 0,04 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 12040753

EAN no.: 4050293628012

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN solid carbide end mill T3 HA shank diameter 6x10x80 mm
  •
    ATORN solid carbide HPC end mill Z4 HA shaft diameter 6.0 x 12 x 57 mm
  •
    ATORN solid carbide HPC end mill Z4 HA shaft diameter 8.0 x 16 x 63 mm
  •
    ATORN solid carbide HPC end mill Z4 HA shaft diameter 10.0 x 20 x 72 mm
  •

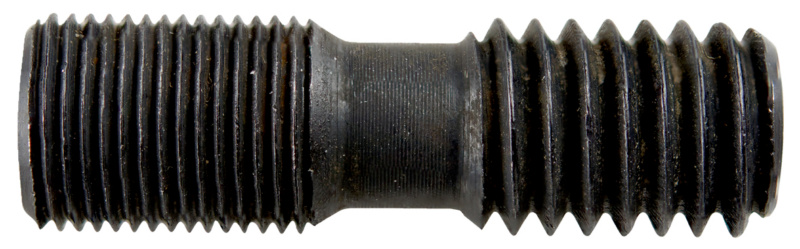

    Clamp. screw for ins. holder type R/L 207...1.2.3.4-D and R/L 0.780...2.3.4.-D.
  •

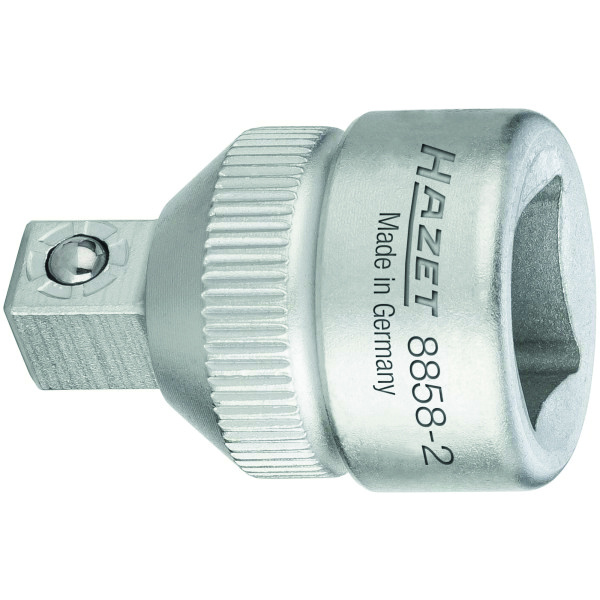

    Adapter 3/8 inch drive to 1/4 inch output CV steel length 26 mm
    7,56 €

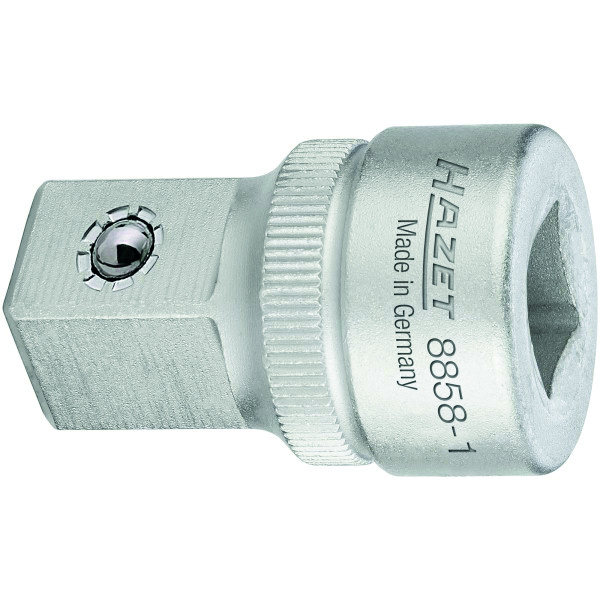

  • Adapter 3/8 inch drive to 1/2 inch output CV steel length 36 mm
    9,81 €
  • Adapter 1/2 inch drive on 3/4 inch output CV steel length 49 mm
    13,59 €
  • Adapter 3/4 inch drive to 1/2 inch output CV steel length 55 mm
    21,63 €
  • Adapter 3/4 inch drive to 1/2 inch output CV steel length 55 mm
    20,88 €
  • Octagonal drift punch set, 5 pieces, DIN 6458, tip dia. mm: 2/3/4/5/6
  •

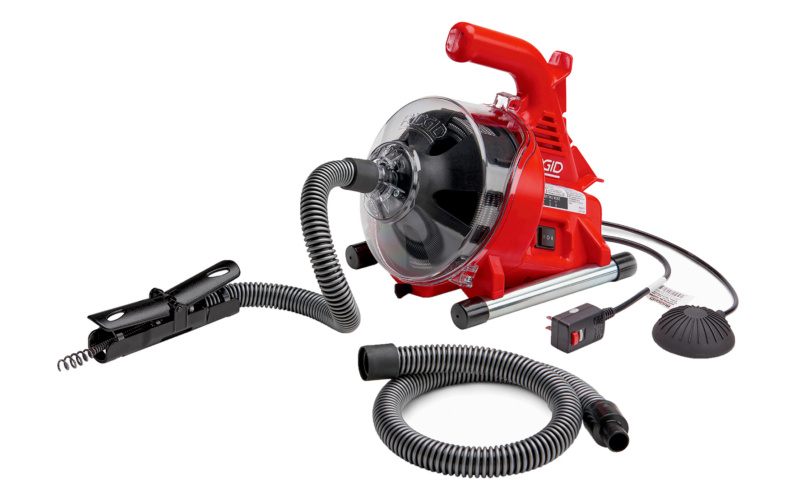

    Pipe cleaning machine PowerClear™, 230 V for pipes dia. 3/4–1.1/2 inch
