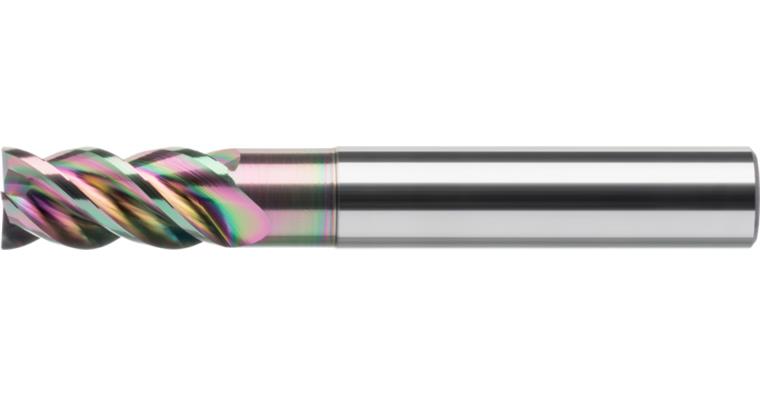

ATORN solid carbide HPC end mill Z4 HA shaft diameter 8.0 x 16 x 63 mm

ATORN solid carbide HPC end mill Z4 HA shaft diameter 8.0 x 16 x 63 mm

ATORN solid carbide HPC end mill Z4 HA shaft diameter 8.0 x 16 x 63 mm
Item no: 1016892 105

Online price:

Still in stock: 5

Application
HPC end mill with variable pitch and variable twist for roughing and finishing non-ferrous metals with maximum results.

Execution
  • solid carbide ultra-fine grain
  • straight shank in line with DIN 6535 HB
  • ULTRA-N PRO-coated
  • with edge protection chamfer
  • Defined edge rounding of the cutting edge
  • centre cutting
  • with clearance
  • Polish sanding

Advantage
  • Ultra-smooth coating thickness
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 4 PCS
Twist angle: 43° | 47°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 16 mm
Clearance length: 25 mm
Length: 63 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 7,8 mm
Shank diameter: 8 mm
fz aluminium: 0,09 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 12040757

EAN no.: 4050293628050

Product Datasheet Datasheet cutting values
