LIZZARD Wendeplatten XNEX 080610 HF …

LIZZARD Wendeplatten XNEX 080610 HF …

LIZZARD Wendeplatten XNEX 080610 HF …
Item no: 1017558 407

Online price:

Available for immediate delivery

Execution

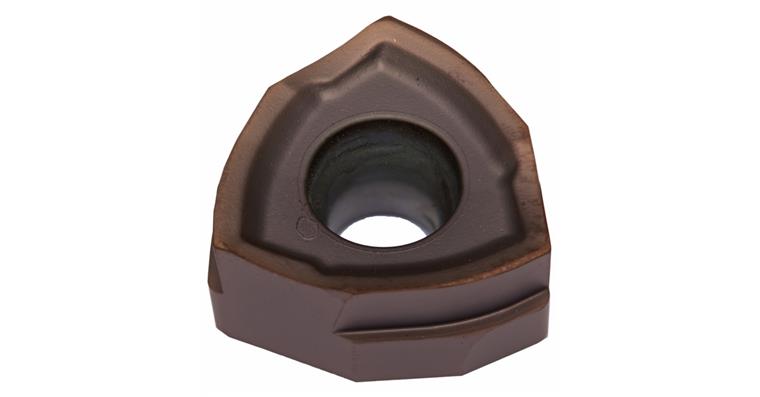

Indexable inserts XNEX 080610 HF …


Brand: LIZZARD
ISO name: XNEX 080610-HF
Surface: TiAlN multilayer coating
Cutting material: Carbide
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: E
Indexable insert type ISO: X
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 10
Inner circle diameter (d): 12,5 mm
Knife edge length (l): 7,5 mm
Mounting bore diameter (d1): 4,6 mm
Corner radius (r): 1,0 mm
Thickness of indexable insert (S): 6,56 mm
Carbide type: HPM30M
Coating: CVD
Materials group: P (primary application) | M (primary application)
Carbide type ISO: P25 | P40 | M20 | M40
Min./max. Vc in steel: 110-200 m/min
min./max. ap steel: 0.5-6.0 mm
min./max. fz steel: 0.4-1.0 mm/U
Min./max. Vc in stainless steel: 114-171 m/min
min./max. ap stainless steel: 0.5-6.0 mm
min./max. fz stainless steel.: 0.4-1.0 mm/U
Number of pieces per packet: 10 PCS

EAN no.: 4024496173334

Product Datasheet
