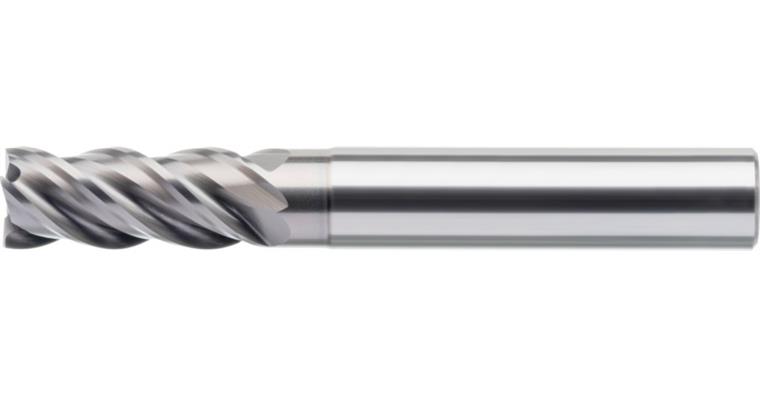

ATORN HPC POWER SC end mill, STAINLESS STEEL, 10.0 x 22 x 32 x 72 mm HA, VA long

ATORN HPC POWER SC end mill, STAINLESS STEEL, 10.0 x 22 x 32 x 72 mm HA, VA long

ATORN HPC POWER SC end mill, STAINLESS STEEL, 10.0 x 22 x 32 x 72 mm HA, VA long
Item no: 1016556 110

Online price:

Available in 5-7 working days.

Application
HPC end mill for machining rust- and acid-proof steels and titanium and nickel-based alloys, optimal application in trochoidal milling and in edge, corner and groove machining.

Execution
  • Solid carbide ultra-fine grain
  • ULTRA M high-performance coating
  • Centre cutting
  • Uneven twist angle: 41°/44°
  • Unequal cutting edge pitch
  • Optimised cutting edge design
  • With clearance
  • Cutting edge with edge preparation

Advantage
  • Increased material removal rate
  • High process reliability owing to robust cutting edges
  • Higher feed rates and cutting depths possible
  • Reduces vibrations
  • Ideal for static and dynamic trochoidal milling


Brand: ATORN
Cutting material: SC
Surface: ULTRA M
Type: VA
Number of cutting edges (Z): 4 PCS
Twist angle: 41° | 44°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 10 mm
Cutting edge length: 22 mm
Clearance length: 32 mm
Length: 72 mm
Clearance diameter: 9,6 mm
Shank diameter: 10 mm
fz stainless steel: 0,07 mm
Overall stainless steel suitability: 1
fitness not iron total: 3
fitness Titan/Nickel/Super total: 1

ATORN-No.: 10617289

EAN no.: 4050293410662

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE B 371 0° M10 1.5 mm ISO2xD 3xD CNC N
    26,57 €
  • ATORN twist drill bit set N HSS steam-treated DIN 338 D 1.0-10.5 mm, 0.5+CDB
  •
    ATORN hand tap set HSSE-PM A/D/C 352 0° M3 0.5 mm ISO2 x D/S 3xD
    81,51 €
  • ATORN hand tap set HSSE-PM A/D/C 352 0° M4 0.7 mm ISO2 x D/S 3xD
  •
    Machine tap DIN 352 straight HSS-E short M 12
    37,91 €
  • ATORN HPC POWER SC end mill, STAINLESS STEEL, 12.0 x 26 x 38 x 83 mm HA, VA long
    109,27 €
  • ATORN HPC POWER SC end mill, STAINLESS STEEL, 10.0 x 22 x 32 x 72 mm HB, VA long
    73,79 €
  • ATORN SC torus milling cutter Z4 HA shaft diameter 12.0 x 26 x 83 mm radius 2.0
  •

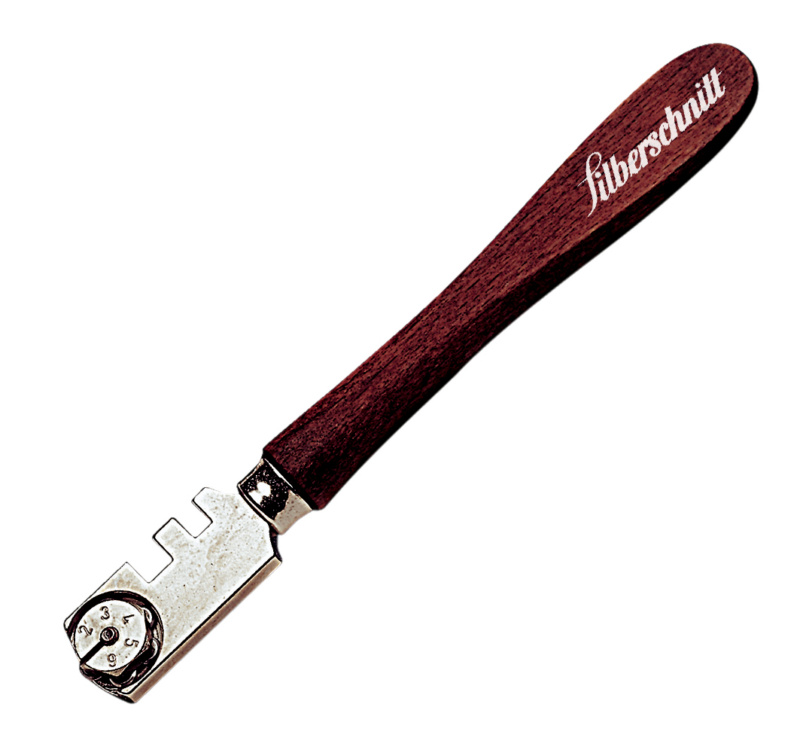

    Silver edge glass cutter with 6 cutting wheels for glass thickness 3-10 mm
