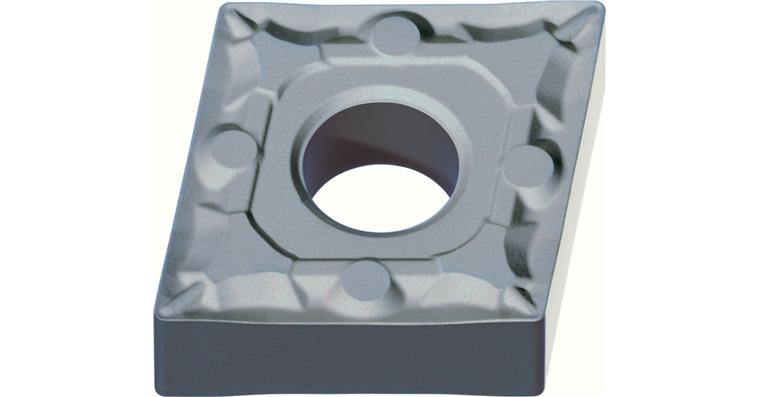

ATORN indexable insert, negative, CNMG 120404-FP HC7610

ATORN indexable insert, negative, CNMG 120404-FP HC7610

ATORN indexable insert, negative, CNMG 120404-FP HC7610
Item no: 1018554 105

Online price:

Available for immediate delivery

Application
For longitudinal turning and facing with low cutting depths in favourable cutting conditions

Execution
sintered cemented carbide indexable insert

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P10
Carbide type: HC7610
ISO-Code Rotating: CNMG 120404
Material to be processed: Steel | Cast metal
min./max. ap: 0.1-1.5 mm
f min./max.: 0.04-0.2 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,04 mm/r
max. f: 0,2 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP
Min./max. Vc in steel: 110-420 m/min
Min./max. Vc in cast iron: 110-320 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870518

EAN no.: 4050293350920
