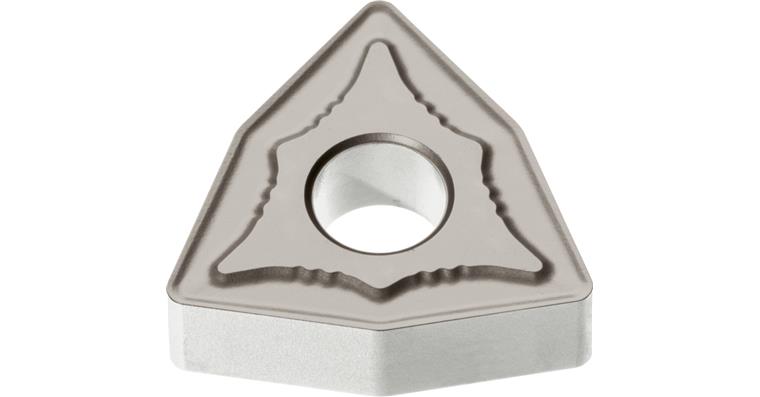

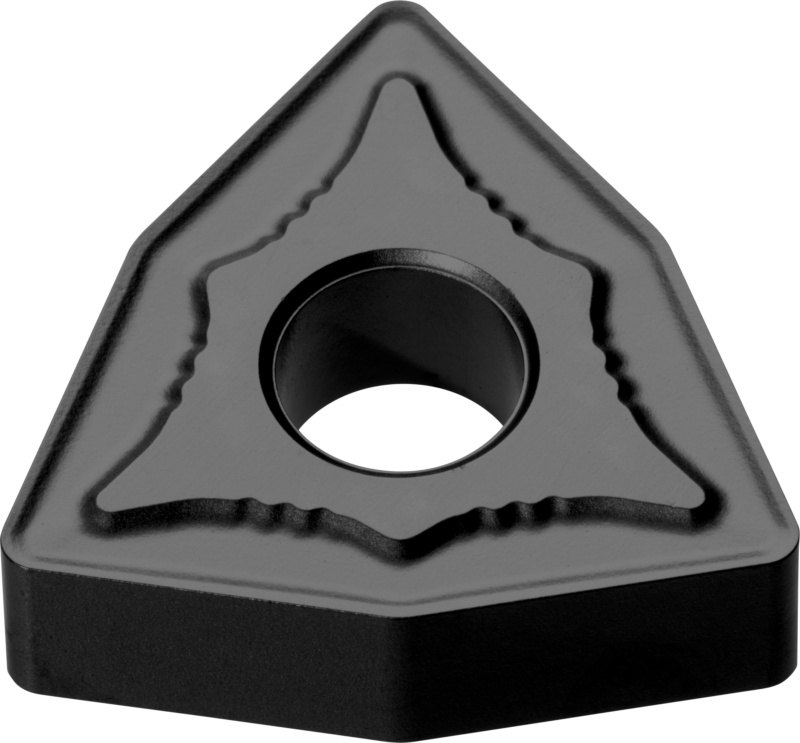

ATORN indexable insert, negative, WNMG 080408-RM HC7530

ATORN indexable insert, negative, WNMG 080408-RM HC7530

ATORN indexable insert, negative, WNMG 080408-RM HC7530
Item no: 1018620 725

Online price:

Only while stocks last: 15
Replacement article

Application
For longitudinal turning and facing with a wide infeed range and stable cutting geometry in unfavourable cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Very tough type with low risk of breakage in unfavourable cutting conditions
  • Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Unfavourable
Carbide type ISO: M30
Carbide type: HC7530
ISO-Code Rotating: WNMG 080408
Material to be processed: Stainless steel | Special alloy
min./max. ap: 1.2-6 mm
f min./max.: 0.22-0.4 mm/U
Materials group: S (secondary application) | M (primary application)
f min.: 0,22 mm/r
max. f: 0,4 mm/r
max. ap: 6 mm
min. ap: 1,2 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RM
Min./max. Vc in stainless steel: 90-200 m/min
Min./max. Vc in special alloys: 30-60 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870480

EAN no.: 4050293081305

Product Datasheet
