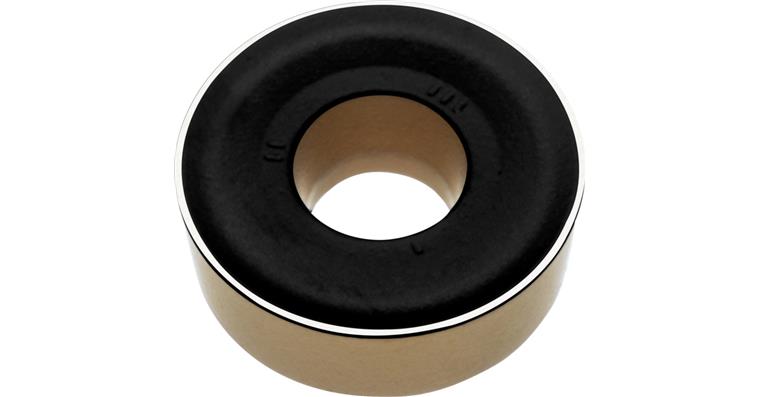

Brand: ATORN
Shape of indexable insert ISO: R
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: X
Size of indexable insert ISO: 20
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: M0
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: ACP15T-1
ISO-Code Rotating: RCMX 2006M0
Material to be processed: Steel | Cast iron
min./max. ap: 2-8 mm
f min./max.: 0.12-2.5 mm/U
f min.: 0,12 mm/r
max. f: 2,5 mm/r
max. ap: 8 mm
min. ap: 2 mm
Chip breaker code: MP6
Min./max. Vc in steel: 110-350 m/min

ATORN-No.: 12350850

EAN no.: 4066107044664

Product Datasheet Datasheet cutting values
