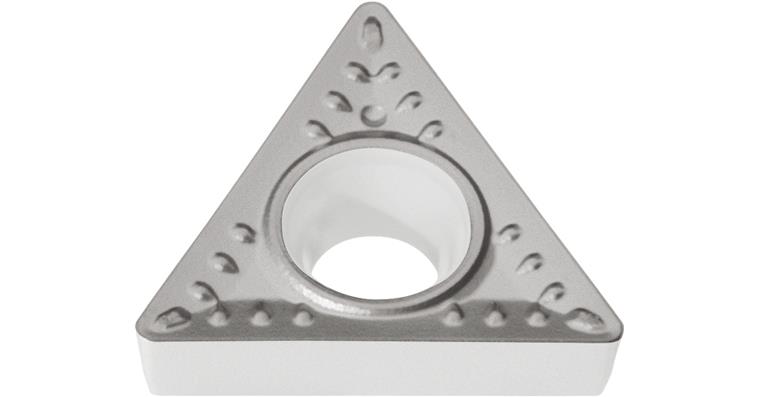

ATORN indexable insert, positive, TCMT 16T308-MP HC7520

ATORN indexable insert, positive, TCMT 16T308-MP HC7520

ATORN indexable insert, positive, TCMT 16T308-MP HC7520
Item no: 1018594 405

Online price:

Only while stocks last: 20
Replacement article

Application
For longitudinal turning and facing with a wide infeed range in moderate cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Perfect combination of wear resistance and toughness, for high process stability and a wide range of applications
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7520
ISO-Code Rotating: TCMT 16T308
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.6-4 mm
f min./max.: 0.18-0.35 mm/U
Materials group: M (primary application) | S (secondary application)
f min.: 0,18 mm/r
max. f: 0,35 mm/r
max. ap: 4 mm
min. ap: 0,6 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MPX
Min./max. Vc in stainless steel: 80-210 m/min
Min./max. Vc in special alloys: 30-60 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870454

EAN no.: 4050293081046

Product Datasheet
