Cutting insert for grooving and parting GTN-4 H 42 neutral for cat. 18672

Cutting insert for grooving and parting GTN-4 H 42 neutral for cat. 18672

Cutting insert for grooving and parting GTN-4 H 42 neutral for cat. 18672
Item no: 1018674 115

Online price:

Available for immediate delivery

Application
Suitable for recessing blades art. no. 1018672.

Execution
Neutral


Brand: LIZZARD
Type (Bezeichnung): GTN-4
Recessing width (Einstechbreite W): 4,1 mm
Radius (Radius R): 0,23 mm
f min./max.: 0.06-0.24 mm/U
Tool design: Neutral
Carbide type: H 42
Surface: Coated
Material to be processed: Stainless steel | Steel | Cast metal
Min./max. Vc in steel: 70-200 m/min
Min./max. Vc in stainless steel: 30-200 m/min
Min./max. Vc in cast iron: 70-130 m/min

EAN no.: 4024496048960

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Cutting insert for grooving and parting GTN-5 H 42 neutral for cat. 18672
  •
    Cutting insert for grooving and parting GTN-3 H 42 neutral for cat. 18672
  •
    Recessing blade w/o depth stop SGIH 26-4 for clockwise/anti-clockwise rotation
    114,01 €

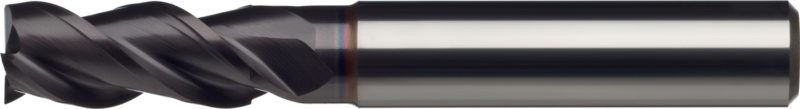

  • ATORN screw-on copy milling cutter, diameter 25.0 mm, T2, M12, 5 cutting edges
  •
