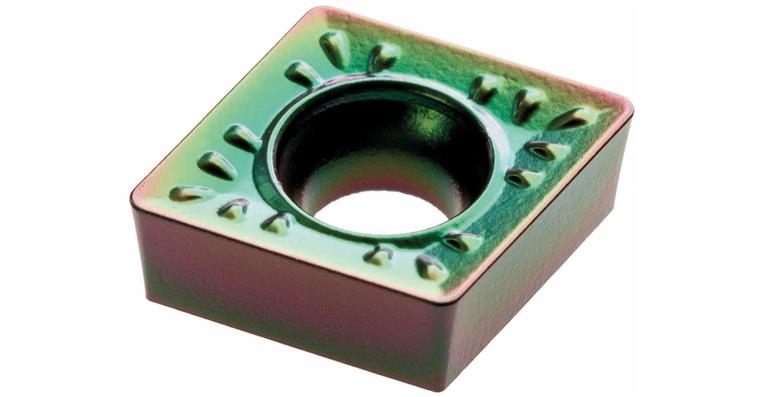

ATORN carbide indexable insert CCMT 09T304-MP5 ACP35T

ATORN carbide indexable insert CCMT 09T304-MP5 ACP35T

ATORN carbide indexable insert CCMT 09T304-MP5 ACP35T
Item no: 1019401 131

Online price:

Available in 6-8 working days.

Advantage
  • Long service life
  • Optimised chip breaker for protection against ridge cracking and temperature influences
  • Universal use


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P35
Carbide type: ACP35T
ISO-Code Rotating: CCMT 09T304
Material to be processed: Steel | Stainless steel
min./max. ap: 0.25-3.5 mm
f min./max.: 0.12-0.4 mm/U
Materials group: P (primary application) | M (secondary application)
f min.: 0,12 mm/r
max. f: 0,4 mm/r
max. ap: 3,5 mm
min. ap: 0,25 mm
Supply type: Medium finishing
Chip breaker code: MP5
Min./max. Vc in steel: 140-190 m/min
Min./max. Vc in stainless steel: 140-200 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370754

EAN no.: 4050293729092

Product Datasheet
