Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Unfavourable
Carbide type ISO: M35
Carbide type: APM35T

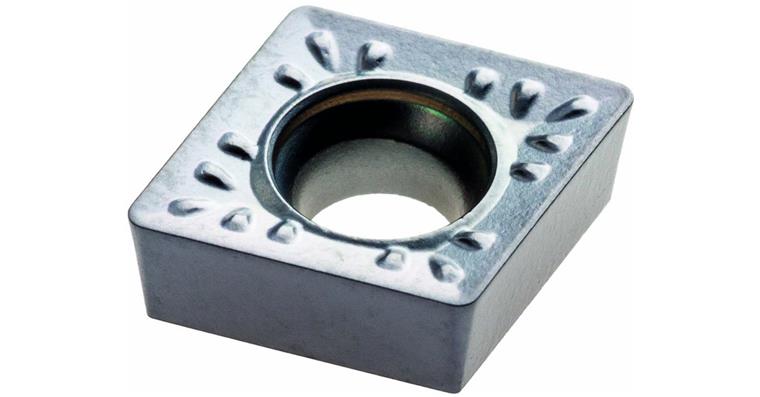

ISO-Code Rotating: CCMT 09T304
Material to be processed: Stainless steel | Steel
min./max. ap: 0.25-3.5 mm
f min./max.: 0.12-0.3 mm/U
Materials group: M (primary application) | P (secondary application)
f min.: 0,12 mm/r
max. f: 0,3 mm/r
max. ap: 3,5 mm
min. ap: 0,25 mm
Supply type: Medium finishing
Chip breaker code: MM3
Min./max. Vc in steel: 90-150 m/min
Min./max. Vc in stainless steel: 100-200 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370764

EAN no.: 4050293729191

Product Datasheet
