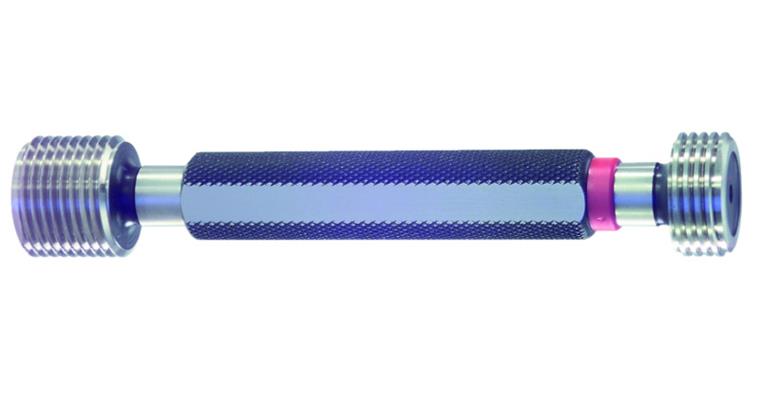

Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 6 6H

Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 6 6H

Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 6 6H
Item no: 1032413 214

Online price:

Still in stock: 8

Application
For testing the flank diameter of female threads and compliance with minimum dimensions of the external diameter

Execution
  • Hardened and finely ground
  • Right-hand thread
  • Tolerance 6H (M1-M1.4 tolerance 5H)
  • Go side with full thread profile (must screw into the test specimen without the use of force)
  • Scrap side with shortened thread flanks and only a few turns (must not screw in)
  • Best gauge steel

Notes
Special gauges deliverable in all dimensions, tolerances and set combinations on request.

Brand: JBO
Calibration Group: AA
Thread type: Metric thread
Thread type x nominal diameter x pitch: M6 x 1.00
Pitch: 1,00 mm
Tolerance class: 6H
Material: Gauge steel
DIN: 13 | 2280

Manufacturer part no.: 512252

EAN no.: 4046122119462

Product Datasheet
