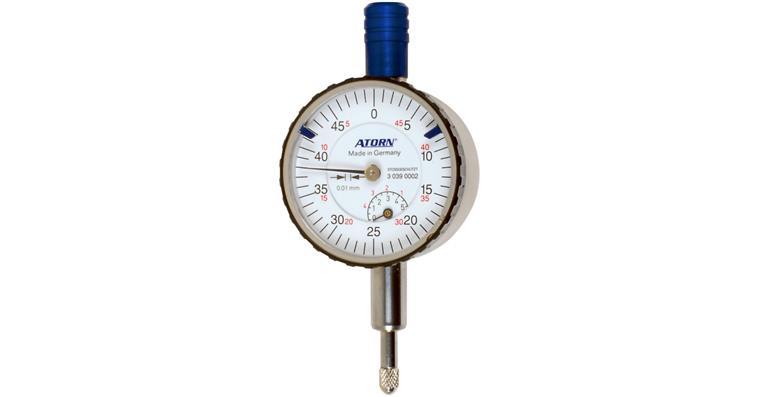

ATORN dial gauge, 10 mm meas. diff. 0.01 mm graduation shock-res, dia. 58 mm

ATORN dial gauge, 10 mm meas. diff. 0.01 mm graduation shock-res, dia. 58 mm

ATORN dial gauge, 10 mm meas. diff. 0.01 mm graduation shock-res, dia. 58 mm
Item no: 1033024 098

Online price:

Available for immediate delivery

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Measuring pin and clamping shaft made from durable stainless steel
  • Coloured tolerance marks for clear identification of the set tolerance fields
  • Comfortable lifting sleeve with additional dust protection function

Advantage
Gauge slides with ceramic balls (low wear, not electrically conductive)

Delivery
In a case


Brand: ATORN
Length measuring range: 10 mm
Scale value: 0,01 mm
Error limit: 15 µm
Measurement travel of one pointer revolution: 1,0 mm
Outer diameter: 58 mm
Shock protection: Yes
Material of outer ring: Metal
IP protection class: IP 40
Measurement force: 1,0 N
DIN: 878

ATORN-No.: 30390001

EAN no.: 4050293156812

Product Datasheet
