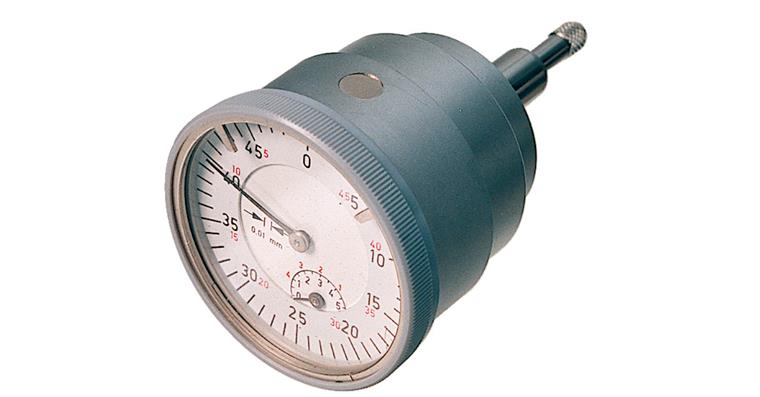

Dial gauge rear button reading 0.01 mm MR 5 mm dia. 40 mm

Dial gauge rear button reading 0.01 mm MR 5 mm dia. 40 mm

Dial gauge rear button reading 0.01 mm MR 5 mm dia. 40 mm
Item no: 1033050 101

Online price:

Available for immediate delivery

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2 pointers (small pointer for absolute mm display)
  • 2 adjustable tolerance marks
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Nickel-plated metal housing
  • Replaceable gauge slides
  • With a rearward probe
  • Dial with black advancing and red returning numbers
  • Avec palpeur à l'arrière

Advantage
Mounting on the clamping shank or on the chamfer dia. 28 mm h6

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 5 mm
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 0,5 mm
Outer diameter: 40 mm
Shank diameter: 8 mm
IP protection class: 0 - not applicable
Shock protection: No
Material of outer ring: Plastic
Rotating housing: No
Shaft length: 16,5 mm
Other standard: Company standard
Scale value: 0,01 mm

EAN no.: 4024496080960
