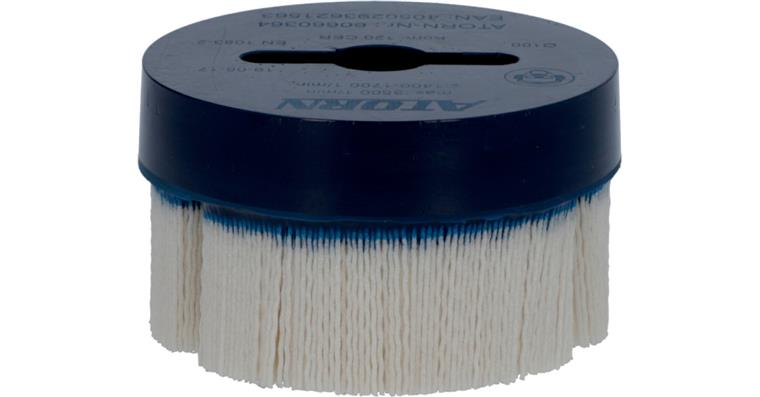

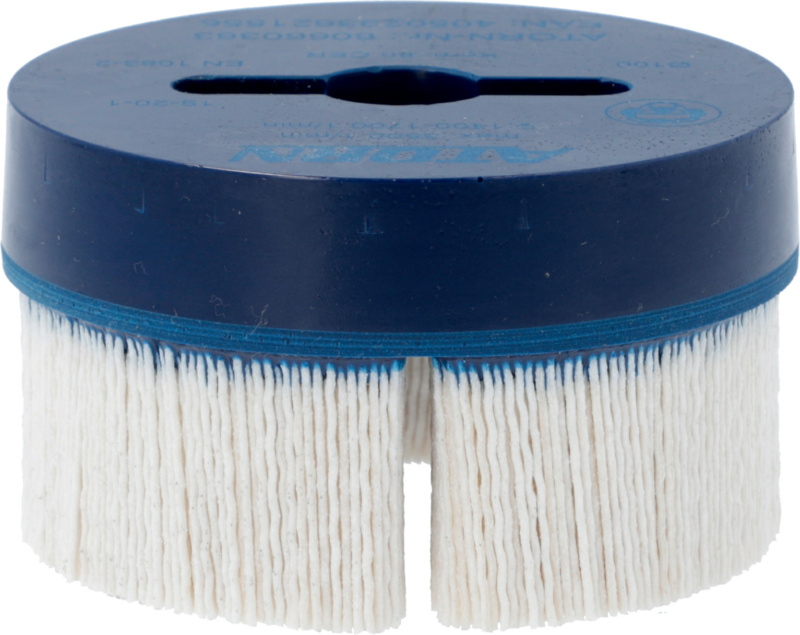

ATORN disc brushes, grit 120, brush diameter 106 mm, ceramic grain

ATORN disc brushes, grit 120, brush diameter 106 mm, ceramic grain

ATORN disc brushes, grit 120, brush diameter 106 mm, ceramic grain
Item no: 1047801 302

Online price:

Still in stock: 4

Application
On CNC machining centres and with the use of robots, preferably in wet sanding with cooling lubricant. Machining of flat components: precise deburring, edge rounding, fine machining after milling, surface finishing of e.g. sealing and contact surfaces.

Execution
  • with longitudinal slot for clamping on face mill arbours (DIN 6357) and combination mill arbours (DIN 6358) - no additional accessories required
  • Disc brushes with dense sanding bristle trim (full trim) firmly moulded into the plastic disc
  • Densité de garniture produite 4x supérieure par rapport au processus conventionnel (estampage)

Advantage
  • Post-machining directly after the cutting process - without changing the geometry of the workpiece
  • Continuously released abrasive grain ensures reproducible results
  • Very high dimensional stability and accuracy
  • Controllable wear properties to end of tool life - no bristle breakage
  • 4 x higher trim density produced than in conventional process (stamped)

Notes
Infeed with brushes of diameter 50: 0.3 mm (fine)-1.0 mm (coarse) infeed with brushes dia. 76-150: 0.8 mm (fine)-1.5 mm (coarse) Other designs available on request

Brand: ATORN
Disc diameter: 106 mm
Brush diameter: 100 mm
Bore diameter: 22 mm
Material of edging: Ceramic grain
Filling length: 35 mm
Grid size: 120
Min./max. rotation speed: 1400-1700 U/min(rpm)
Min./max. feed speed: 3000-5500 mm/min

ATORN-No.: 60660364

EAN no.: 4050293621563

Product Datasheet
