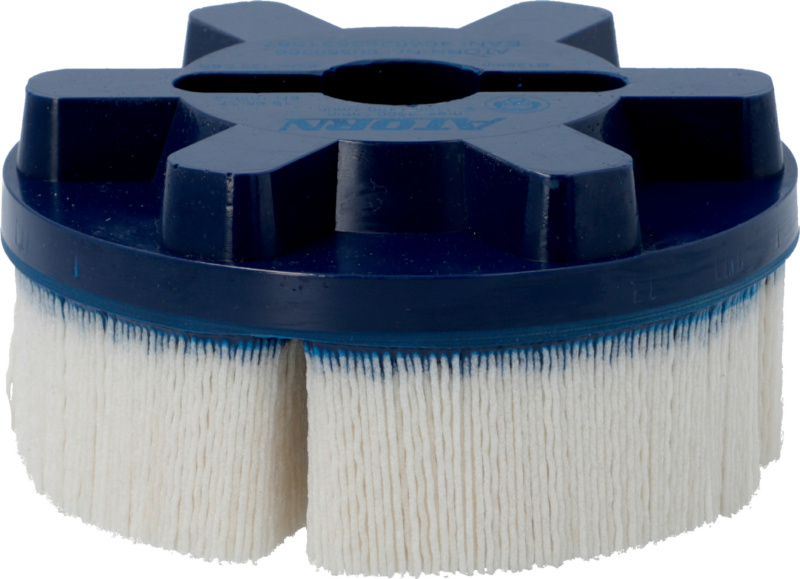

ATORN disc brushes, grit 80, brush diameter 76 mm, ceramic grain

ATORN disc brushes, grit 80, brush diameter 76 mm, ceramic grain

ATORN disc brushes, grit 80, brush diameter 76 mm, ceramic grain
Item no: 1047801 201

Online price:

Still in stock: 3

Application
On CNC machining centres and with the use of robots, preferably in wet sanding with cooling lubricant. Machining of flat components: precise deburring, edge rounding, fine machining after milling, surface finishing of e.g. sealing and contact surfaces.

Execution
  • with longitudinal slot for clamping on face mill arbours (DIN 6357) and combination mill arbours (DIN 6358) - no additional accessories required
  • Disc brushes with dense sanding bristle trim (full trim) firmly moulded into the plastic disc
  • Densité de garniture produite 4x supérieure par rapport au processus conventionnel (estampage)

Advantage
  • Post-machining directly after the cutting process - without changing the geometry of the workpiece
  • Continuously released abrasive grain ensures reproducible results
  • Very high dimensional stability and accuracy
  • Controllable wear properties to end of tool life - no bristle breakage
  • 4 x higher trim density produced than in conventional process (stamped)

Notes
Infeed with brushes of diameter 50: 0.3 mm (fine)-1.0 mm (coarse) infeed with brushes dia. 76-150: 0.8 mm (fine)-1.5 mm (coarse) Other designs available on request

Brand: ATORN
Disc diameter: 76 mm
Brush diameter: 70 mm
Bore diameter: 22 mm
Material of edging: Ceramic grain
Filling length: 35 mm
Grid size: 80
Min./max. rotation speed: 1900-2300 U/min(rpm)
Min./max. feed speed: 2500-5000 mm/min

ATORN-No.: 60660361

EAN no.: 4050293621532

Product Datasheet
