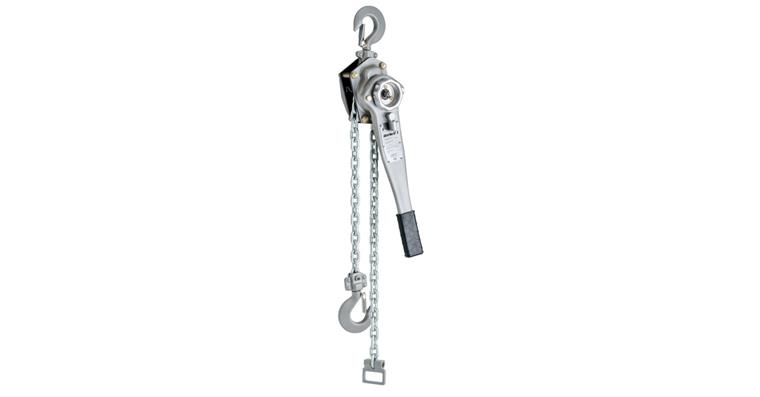

Multi-purpose device Silverline HZ S, one chain strand, load capacity 1500 kg

Multi-purpose device Silverline HZ S, one chain strand, load capacity 1500 kg

Multi-purpose device Silverline HZ S, one chain strand, load capacity 1500 kg
Item no: 1080173 102

Online price:

Still in stock: 3

Execution
  • A low-maintenance, easy-to-use device
  • Inexpensive and economical
  • End-to-end stud bolts between the side panels and cover mounting ensure stability
  • Chain guide rollers allow for faultless running of the load chain
  • Bearings in the side panels guarantee durability and ease of maintenance
  • The standard zinc-plated load chain provides additional corrosion protection
  • Forged suspension and load hooks made of high-alloyed, heat-treated steel that is resistant to ageing will open without breaking in the event of an overload

Notes
This hoist is not intended for transporting persons and must not be used for this purpose.

Brand: YALE
Nominal chain thickness: 24 mm
Stroke force at nominal load: 36 daN
Stroke height per lever revolution: 10 mm
Chain diameter: 8 mm
Load-carrying capacity: 1500 kg
Min. hook spacing: 410 mm
Length of lever: 410 mm
Lift height: 1500 mm
Number of load chains: 1 PCS
Weight: 10 kg

Manufacturer part no.: N02300114

EAN no.: 4053981889306

Product Datasheet
Additional articles

Please select a button.

Accessories Similar product
Versions
loading
Keywords:

You might also be interested in this

  • Multi-purpose device Silverline HZ S, one chain strand, load capacity 750 kg
  •
    Countersink drill + deburrer 90° straight shank single-flute HSS-E dia. 30 mm
  •
    Precis. engineer's pliers polished hd flat-wide L 125 mm smooth grip. surfaces
  •
    Countersink drill + deburrer 90° straight shank single-flute HSS-E dia. 10 mm
  •
    Forearm protection with thumb hole length 350 mm PU=1 piece size universal
  •

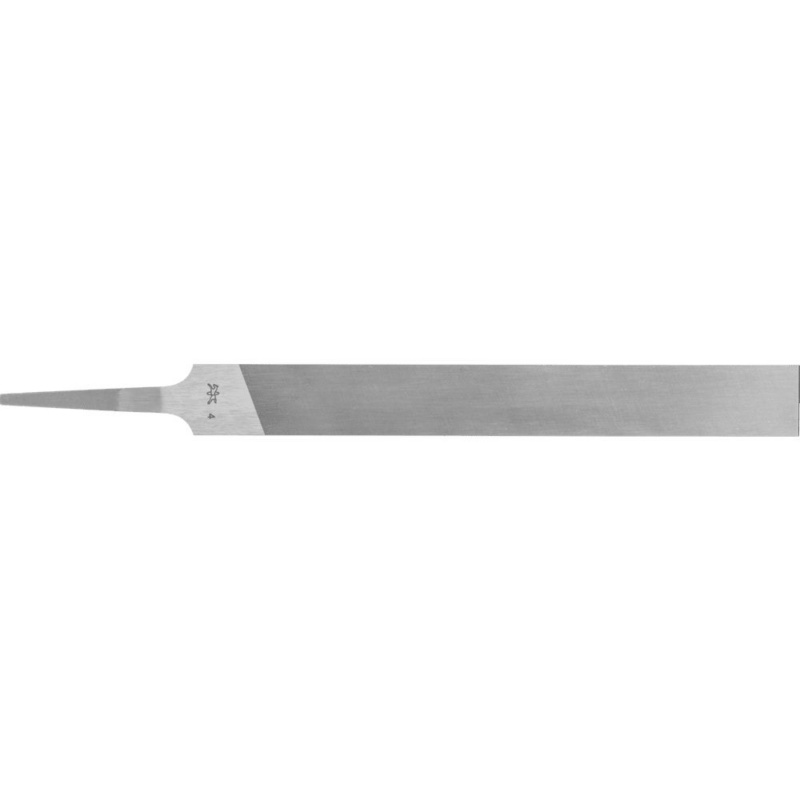

    Precision flat file, normal width, length 300 mm, cut 3
  •
