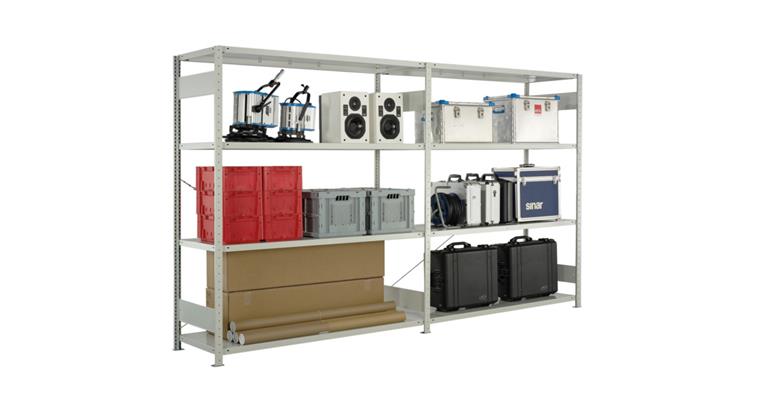

Boltless rack basic bay CLIP 200 kg w/ 5 shelves, zinc-plated, 2500x1700x500 mm

Boltless rack basic bay CLIP 200 kg w/ 5 shelves, zinc-plated, 2500x1700x500 mm

Boltless rack basic bay CLIP 200 kg w/ 5 shelves, zinc-plated, 2500x1700x500 mm
Item no: 1085438 103

Online price:

Availability on demand

Application
Universal shelving system for all storage applications, quick setup or conversion by simply slotting in the shelves, can be assembled without tools.

Execution
  • XXL bay length for large-volume goods
  • One row boltless rack with pre-assembled frame = clinched frame
  • Shelves height-adjustable every 25 mm
  • Shelves with a 50 mm perforation grid to accommodate accessories
  • Planning dimensions basic shelf one row: Nominal length + 56 mm, nominal depth + 36 mm

Advantage
Quick plugin assembly without tools

Notes
Shelves with a height/depth ratio equal to or greater than 5:1 must be secured against tipping (anchored to the wall or floor). The loads indicated per shelf and per bay apply to evenly distributed loads. Shelf load specifications apply to rack rows with 3 or more bays. Cover shelf max. 200 kg.

Brand: META
Design: Single-sided shelving unit
Surface: Zinc plated
Height: 2500 mm
Nominal length: 1700 mm
Nominal depth: 500 mm
Number of shelves: 5 PCS
Load-carrying capacity per shelf: 200 kg
Grid dimension: 25 mm
Number of frame: 2 PCS
Load-carrying capacity per field: 1400 kg
Design of the frame: Pre-assembled
Colour: Zinc
Type of assembly: To insert
Quality label: RAL-RG 614/1
Material: Steel

Manufacturer part no.: 200182660

EAN no.: 4026212309607

Product Datasheet
