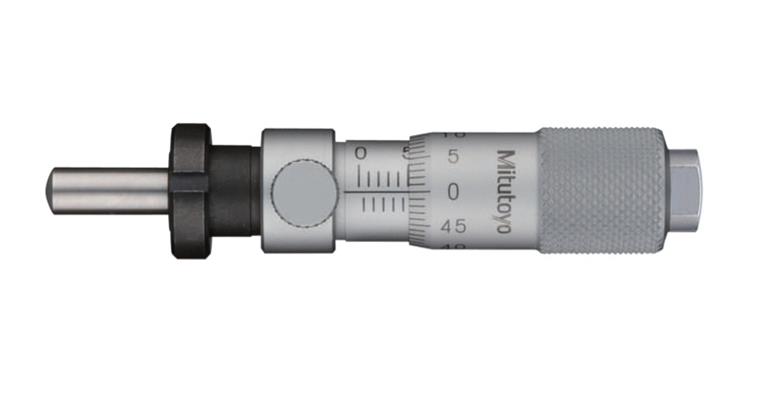

Einbaumessschraube 0-13mm mit Spindelfeststellung spährisch mit Klemmmutter

Einbaumessschraube 0-13mm mit Spindelfeststellung spährisch mit Klemmmutter

Einbaumessschraube 0-13mm mit Spindelfeststellung spährisch mit Klemmmutter
Item no: 1001351 152

Online price:

Available in 11-13 working days.

Application
For integration in measuring and pre-adjustment devices and for use as setting and control elements in machine tools

Execution
  • Hardened steel measuring surfaces
  • Cylindrical clamping shank


Brand: MITUTOYO
Min./max. length measuring range: 0-13 mm
Type: sphärisch SR4 mit Klemmmutter
Digit increment: 0,01 mm
Clamp in shank diameter: 9,5 mm
Measuring surface diameter: 5 mm
Shaft length: 9,5 mm
Installation length: 16,5 mm
Diameter: 13 mm
Measuring spindle increments: 0,5 mm
Error limit: 0,002 mm
Type of locating: With locking screw
Other standard: Company standard
Spindle clamping: Yes

Manufacturer part no.: 148-153-10

EAN no.: 4946368861715

Product Datasheet
