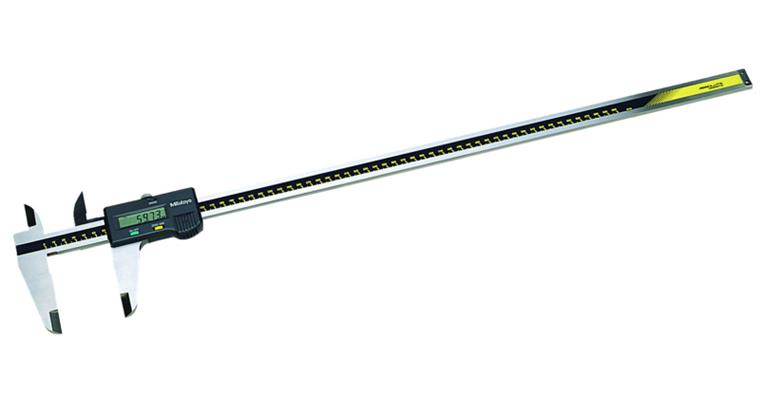

Digital pocket vernier callipers 0-450 mm f. large meas. ranges with data output

Digital pocket vernier callipers 0-450 mm f. large meas. ranges with data output

Digital pocket vernier callipers 0-450 mm f. large meas. ranges with data output
Item no: 1001352 325

Online price:

Available in 11-13 working days.

Application
For measuring external, internal, step and depth dimensions.

Execution
  • ABSOLUTE system enables highly accurate measurement results
  • High-contrast digital display
  • Locking screw at the top
  • High-quality guide surfaces for smooth slide movement
  • Functions: ORIGIN (ABS zero point), ON/OFF, ABS/INC (INC ZERO), low voltage alarm

Advantage
Highly robust construction for large measuring ranges

Delivery
1x box
1x battery

Notes
For test gauge, see art. no. 1032060 201.
For connection cables, see art. no. 1035200 607.
For replacement batteries, see art. no. 1039900 101.

Brand: MITUTOYO
Min./max. length measuring range: 0-450 mm
Digit increment: 0,01 mm
Depth gauge rod: Without
Length of jaw: 90 mm
Data transmission type: Cable | Wireless
Error limit: 0,07 mm
Interface: Digimatic | USB 2.0 type A | Integrated Wireless
Other standard: Company standard
Calibration Group: A
Length of cross tips: 38 mm
Digit height: 10 mm
Type of locating: With locking screw

Manufacturer part no.: 500-500-10
