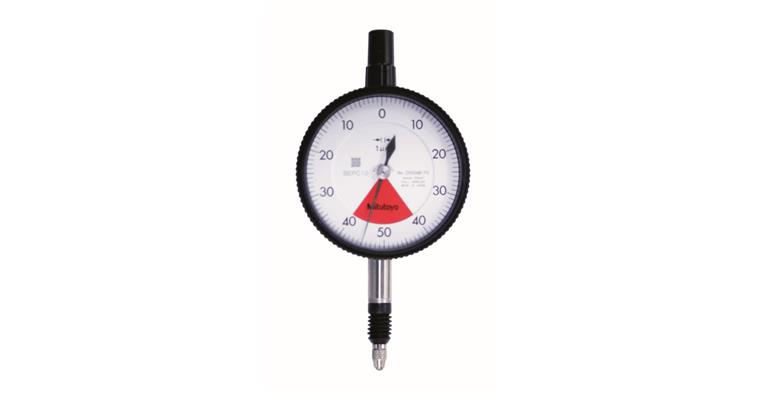

Dial gauge metric 0.08 mm, 0.001 mm, with flat end cover, IP64

Dial gauge metric 0.08 mm, 0.001 mm, with flat end cover, IP64

1001358715 Dial gauge metric 0.08 mm, 0.001 mm, with flat end cover, IP64
Item no: 1001358 715

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Safety dial gauge with outer ring, dia. 57 mm
  • Gauge slide: carbide-tipped, thread: M 2.5 x 0.45 mm
  • Dial gauges with just one pointer revolution eliminate reading errors as seen with dial gauges with continual indicator rotation.
  • The locking screw and stroke lever (optional) can be installed on either the left or right. Can be mounted and removed easily without tools


Brand: MITUTOYO
Length measuring range: 0,08 mm
Scale value: 0,001 mm
Measurement travel of one pointer revolution: 0,1 mm
Outer diameter: 57 mm
Shank diameter: 8 mm
IP protection class: IP 64
Shock protection: Yes
Min./max. measurement force: 0.4-2 N
Shaft length: 12,3 mm
Error limit: 0,003 mm
Digit increment: 0,001 mm
Calibration Group: C
Type: flat back panel, jewelled bearing, IP64

Manufacturer part no.: 2900AB-70

Product Datasheet
