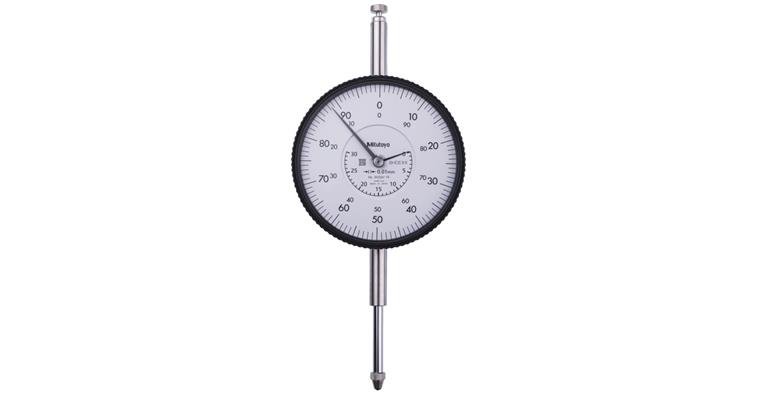

Messuhr metrisch 30 mm, 0,01mm, mit flacher Rückwand, edelsteingelagert, Stoßs.

Messuhr metrisch 30 mm, 0,01mm, mit flacher Rückwand, edelsteingelagert, Stoßs.

1001358844 Messuhr metrisch 30 mm, 0,01mm, mit flacher Rückwand, edelsteingelagert, Stoßs.
Item no: 1001358 844

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Standard dial gauge with large outer ring, dia. 78 mm
  • Gauge slide: carbide-tipped, thread: M 2.5 x 0.45 mm


Brand: MITUTOYO
Length measuring range: 30 mm
Scale value: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 78 mm
Shank diameter: 8 mm
Shock protection: Yes
Min./max. measurement force: 0.4-2.5 N
Shaft length: 25,9 mm
Error limit: 0,025 mm
Digit increment: 0,01 mm
Calibration Group: C
Type: flache Rückwand, edelsteingelagert, Stoßschutz

Manufacturer part no.: 3052AB-19

Product Datasheet
