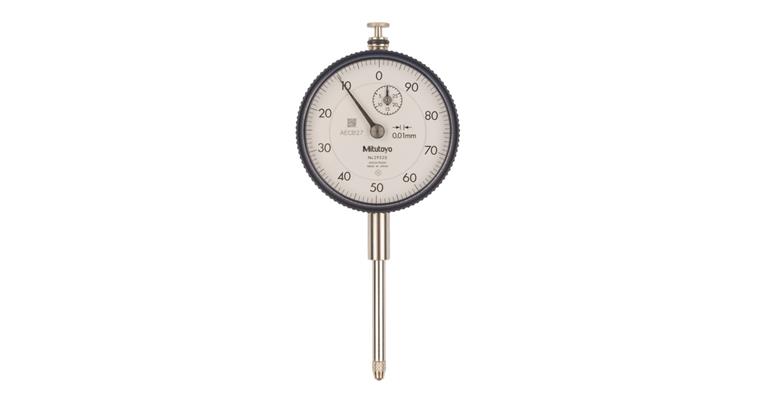

Messuhr metrisch 30 mm, 0,01mm, mit flacher Rückwand, Skalent. geg.Uhrzeigersinn

Messuhr metrisch 30 mm, 0,01mm, mit flacher Rückwand, Skalent. geg.Uhrzeigersinn

Messuhr metrisch 30 mm, 0,01mm, mit flacher Rückwand, Skalent. geg.Uhrzeigersinn
Item no: 1001359 089

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Standard dial gauge with outer ring, dia. 57 mm
  • Gauge slide: carbide-tipped, thread: M 2.5 x 0.45 mm
  • The design prevents the ingress of liquids thanks to the lack of through-bores, the secure seal between the outer ring and glass and the O-ring.


Brand: MITUTOYO
Length measuring range: 30 mm
Type: flache Rückwand, Skalenteilung gegen den Uhrzeigersinn
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 57 mm
Error limit: 0,025 mm
Shank diameter: 8 mm
Min./max. measurement force: 0.4-2.5 N
Shaft length: 16,9 mm
Calibration Group: C

Manufacturer part no.: 2952AB

Product Datasheet
