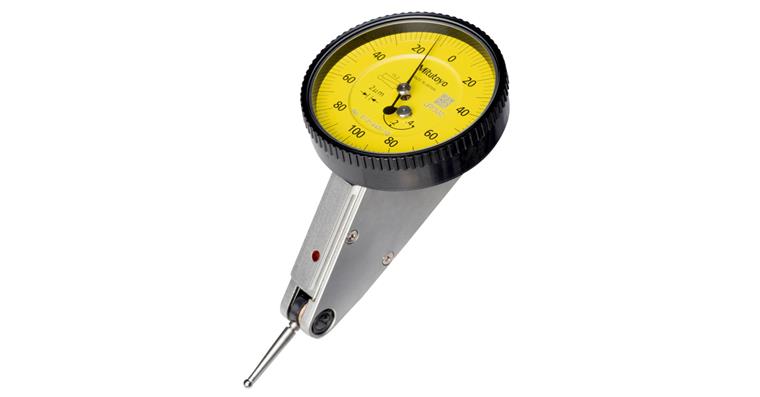

Fühlhebelmessgerät Messbereich 0,4 mm Tasterlänge 18,7 mm Basissatz, Hartmetallkugel

Versions

Item no: 1001360 722

Online price:

Catalogue price: You save:

Available in 11-13 working days.

Min. order quantity: 1

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts, boreholes and aligning workpieces.

Execution

Glare-free, flat dial face for easy reading
The improved placement of the O-ring seal enables easy rotation of the dial face whilst protecting the scale from the ingress of dust and oil
Multi-layer coating on dial face lessens scratches, dirt and glare
Accuracy in accordance with factory standard
Horizontal version, angled 20°

Delivery
includes clamping shank with dia. 8 mm and box

Brand: MITUTOYO
Length measuring range: 0,4 mm
Type: Maßstab 0-100-0
Scale value: 0,002 mm
Diameter: 40 mm
Length of measuring sensor from centre of ball: 18,7 mm
Min./max. measurement force: 0.01-0.3 N
Error limit: 0,006 mm
Connection thread: M1.7
Material of measuring ball: Carbide
Ball diameter: 2 mm
Calibration Group: L

Manufacturer part no.: 513-445-10E

Product Datasheet
