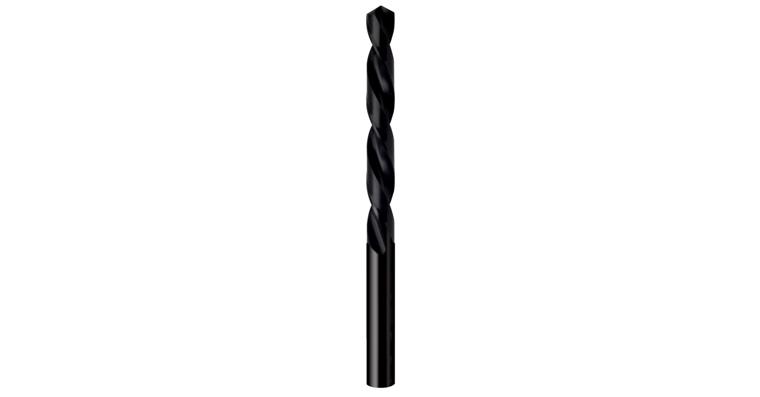

Tw dr bit DIN 338 HSS sh ty. NL D4.00mm

Tw dr bit DIN 338 HSS sh ty. NL D4.00mm

1001400864 Tw dr bit DIN 338 HSS sh ty. NL D4.00mm
Item no: 1001400 864

Online price:

Available in 6-8 working days.

Application
Universal use

Execution
  • Steam-treated
  • Left-hand cutting


Brand: HARTNER
Material to be processed: Universal use
Cutting edge diameter: 4 mm
Length: 75 mm
Chip flute length: 43 mm
Max. drilling depth (D): 5xD
Angle of the tip: 118 Degree
Cutting material: HSS
Surface: Uncoated
Tool holding device: Cylinder shank
Type: N
DIN: 338
Coolant supply: Internal
Cutting direction: Left-hand cutting
Number of cutting edges: 2 PCS
Shank diameter: 4 mm
Tolerance of cutting edge diameter: h8
Tolerance of shank diameter: h6

Manufacturer part no.: 81015 4

EAN no.: 4031096065822

Product Datasheet
