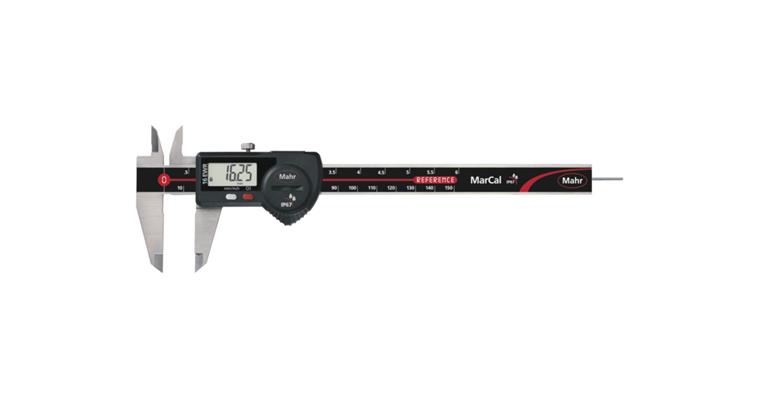

Digital-Taschenmessschieber 0-200 mm MarCal 16 EWR IP67 Datenausgang und Reibrad

Digital-Taschenmessschieber 0-200 mm MarCal 16 EWR IP67 Datenausgang und Reibrad

Digital-Taschenmessschieber 0-200 mm MarCal 16 EWR IP67 Datenausgang und Reibrad
Item no: 1001750 175

Online price:

Available in 6-8 working days.

Application
For measuring external, internal, step and depth dimensions.

Execution
  • High-contrast digital display
  • Locking screw at the top
  • Lapped guideways
  • Measuring blades for internal measurements
  • Hardened, stainless slide and beam
  • Stepped measuring device
  • Dirt scraper in the slide
  • Functions: ON/OFF, AUTO ON/OFF, RESET (resetting the display), mm/inch, LOCK function (keyboard lock), DATA (data transfer)

Advantage
  • Ready for immediate measurements with reference system
  • Raised guideways for protecting the scale
  • Excellent resistance against dust, coolants and lubricants

Delivery
1x 3 V battery (type CR 2032)
1x operating instructions
1x case

Notes
For test gauge, see art. no. 1032060 201.
For connection cables, see art. no. 1035200 404-406.
For replacement batteries, see art. no. 1039900 102.

Brand: MAHR
Min./max. length measuring range: 0-200 mm
Digit increment: 0,01 mm
Depth gauge rod: Flat
Length of jaw: 50 mm
Data transmission type: Cable
Error limit: 0,03 mm
Digit increment in inches: 0,0005 in
Min./max. length measuring range in inches: 0-8 in
IP protection class: IP 67
Interface: Digimatic | Opto RS232 | USB 2.0 type A
With drive wheel: Yes
DIN: 862
Material: Steel, stainless
Calibration Group: A
Length of cross tips: 19 mm
Digit height: 8,5 mm
Type of locating: With locking screw

Manufacturer part no.: 4103069

EAN no.: 4059192002251

Product Datasheet
