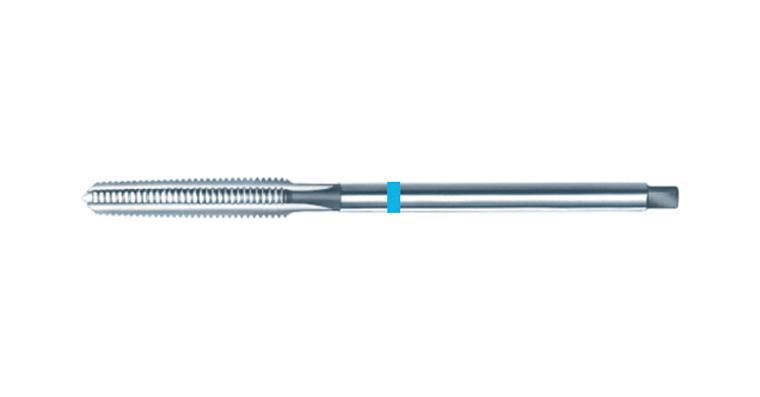

ATORN nut tap 357 0° M3 0.5 mm ISO2xD 3xD CNC P

ATORN nut tap 357 0° M3 0.5 mm ISO2xD 3xD CNC P

1003140337 ATORN nut tap 357 0° M3 0.5 mm ISO2xD 3xD CNC P
Item no: 1003140 337

Online price:

Available for immediate delivery

Application
For machining metric threads (cutting nuts or bridging cavities) in through holes on CNC or conventional machines in the steel, (stainless steel), NF metal and (cast) material groups up to a strength of 1000 N/mm².

Execution
Long design

Advantage
  • Very long thread section can bridge cavities between threads
  • Universal use for maximum flexibility


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M3
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Clearance hole ≤ 3xD
Length: 70 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 0,5 mm
Twist angle: 0°
DIN: 357
Shank diameter: 2,2 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 2,5 mm
Type: P MAX 1000
Coolant supply: External
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470651

EAN no.: 4050293016802

Product Datasheet Datasheet cutting values
