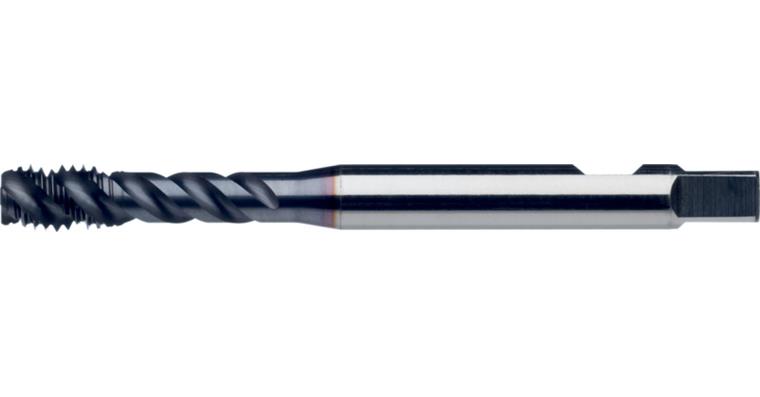

ATORN screw tap HSSE-PM TICN HB C 371 50° M10 ISO2 S 2.5xD CNC

ATORN screw tap HSSE-PM TICN HB C 371 50° M10 ISO2 S 2.5xD CNC

ATORN screw tap HSSE-PM TICN HB C 371 50° M10 ISO2 S 2.5xD CNC
Item no: 1003140 350

Online price:

Available in 4-6 working days.

Application
For manufacturing metric threads in blind holes on CNC or conventional machines in the steel, stainless steel, NF metal, cast and special alloy material groups up to a strength of 1000 N/mm².

Execution
Synchro machine tap with transition-fit H6 shank and clamping surface

Advantage
  • Long service life and high level of process reliability thanks to innovative cutting geometry and coating, and universal application for maximum flexibility in use
  • Individual clamping options: Shrink-fit chucks, synchro tapping chucks and surface chucks
  • Precise shank design: h6


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M10
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 100 mm
Cutting material: HSSE-PM
Surface: TiCN
Pitch: 1,5 mm
Twist angle: 50° (right)
DIN: 371 similar
Shank diameter: 10 mm
Application type/machine type: CNC
Core hole diameter: 8,5 mm
Type: SYNCHRO MAX 50
Coolant supply: External
Shank square: 8 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10483100

EAN no.: 4050293582116

Product Datasheet Datasheet cutting values
