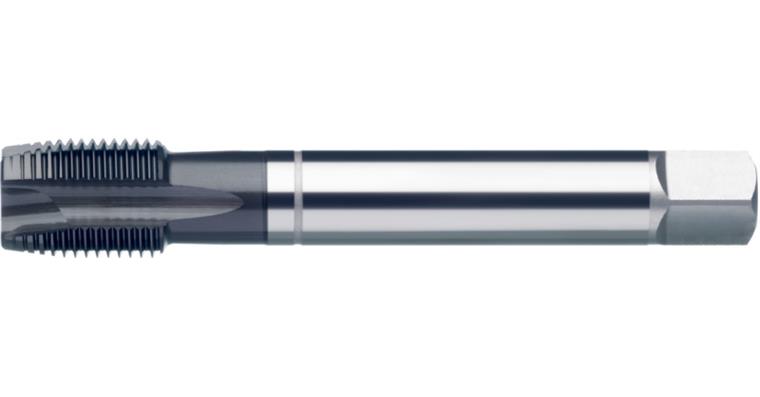

ATORN screw tap HSSE UltraHL B 5156 0° thread 3/8 in ISO2 D 3xD CNC UNI

ATORN screw tap HSSE UltraHL B 5156 0° thread 3/8 in ISO2 D 3xD CNC UNI

1003140883 ATORN screw tap HSSE UltraHL B 5156 0° thread 3/8 in ISO2 D 3xD CNC UNI
Item no: 1003140 883

Online price:

Available for immediate delivery

Application
For manufacturing pipe threads on CNC or conventional machines in through holes in the steel, stainless steel, NF metal, cast and special alloy material groups up to a strength of 1000 N/mm².

Execution
With protruding shank

Advantage
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions
  • High-quality, torsion-resistant HSSE cutting material and cutting edge finish for very high service life requirements
  • Universal use for maximum flexibility


Brand: ATORN
Thread type: Pipe thread
Thread type x nominal diameter in inches: G 3/8 in
Tolerance of screw taps (Tol.): ISO 2 (6H)
Number of thread starts per inch: 19
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 100 mm
Cutting material: HSSE
Surface: ULTRA HL
Twist angle: 0°
DIN: 5156
Shank diameter: 12 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 15,25 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 9 mm

ATORN-No.: 10482875

EAN no.: 4050293580365

Product Datasheet Datasheet cutting values
