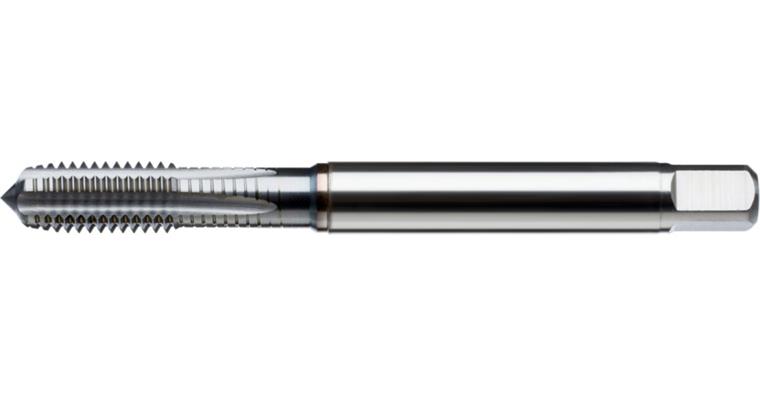

ATORN screw tap HSSE-PM TiCN D DIN 371 0° M12x1.75 ISO2 D/S 1.5xD CNC

ATORN screw tap HSSE-PM TiCN D DIN 371 0° M12x1.75 ISO2 D/S 1.5xD CNC

ATORN screw tap HSSE-PM TiCN D DIN 371 0° M12x1.75 ISO2 D/S 1.5xD CNC
Item no: 1003140 966

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines in through holes and blind holes in the hardened steel material group up to 63 HRC.

Execution
with reinforced shank

Advantage
good service life and process reliability thanks to innovative cutting geometry and coating for machining hardened steel


Brand: ATORN
Material to be processed: Hard material | Hardened steel
Thread type: Metric thread
Thread type x nominal diameter: M12
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance/blind hole ≤ 1.5xD
Lead angle shape: D
Length: 110 mm
Cutting material: HSSE-PM
Surface: TiCN
Pitch: 1,75 mm
Twist angle: 0°
DIN: 371 similar
Shank diameter: 12 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,4 mm
Type: H MAX Control
Coolant supply: External
Shank square: 9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 1
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10478896

EAN no.: 4050293058468

Product Datasheet Datasheet cutting values
