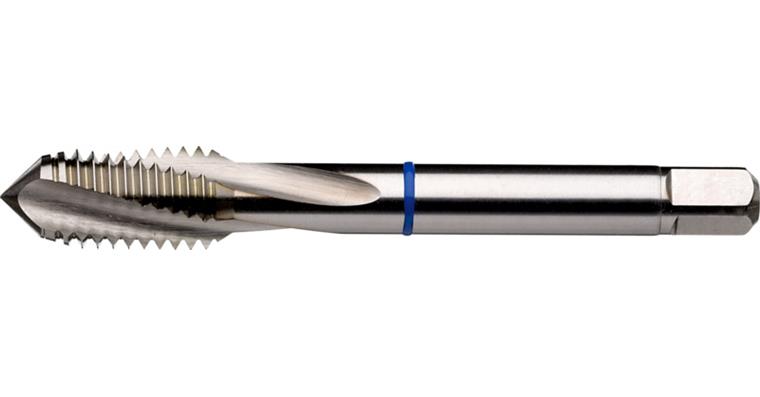

ATORN screw tap HSS C 352 15° M10 1.5 mm ISO2 D/S 1.5xD hand P

ATORN screw tap HSS C 352 15° M10 1.5 mm ISO2 D/S 1.5xD hand P

ATORN screw tap HSS C 352 15° M10 1.5 mm ISO2 D/S 1.5xD hand P
Item no: 1003140 973

Online price:

Available for immediate delivery

Application
For producing metric threads on CNC machines or conventional machines and by hand in blind holes the in steel, (stainless steel), non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm².

Execution
Machine tap, short design

Advantage
Easy accessibility thanks to short design


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M10
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance/blind hole ≤ 1.5xD
Lead angle shape: C
Length: 70 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 1,5 mm
Twist angle: 15° (right)
DIN: 352
Shank diameter: 7 mm
Application type/machine type: Conventional
Core hole diameter: 8,5 mm
Type: P MAX 1000 Control
Coolant supply: External
Shank square: 5,5 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470838

EAN no.: 4050293018653

Product Datasheet Datasheet cutting values
