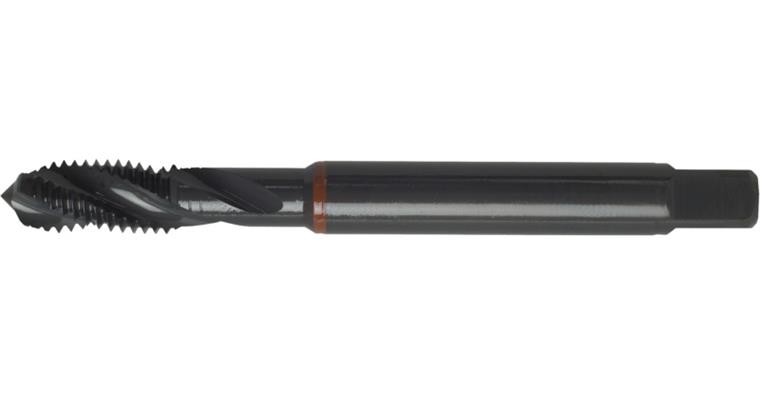

ATORN screw tap HSSE-PM C 371 30° M6 1 mm ISO2 x S 2.0xD CNC S

ATORN screw tap HSSE-PM C 371 30° M6 1 mm ISO2 x S 2.0xD CNC S

ATORN screw tap HSSE-PM C 371 30° M6 1 mm ISO2 x S 2.0xD CNC S
Item no: 1003141 126

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the titanium and nickel alloy material group up to 1000 N/mm².

Execution
structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
good service life and process reliability thanks to innovative cutting geometry and coating for use in titanium and nickel alloys


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M6
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Blind hole ≤ 2xD
Lead angle shape: C
Length: 80 mm
Cutting material: HSSE-PM
Surface: Vaporised
Pitch: 1 mm
Twist angle: 30° (right)
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 5 mm
Type: S MAX Control
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470890

EAN no.: 4050293019179

Product Datasheet Datasheet cutting values
