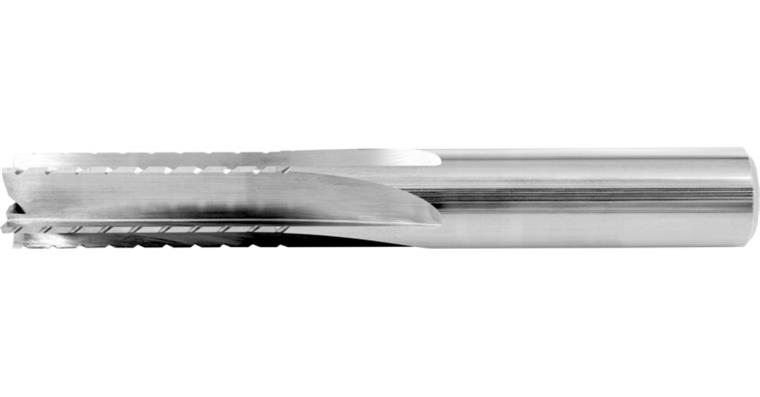

ATORN SC HSC end mill - G/CFRP diameter 3.0 mm W0 degrees L:50x12 t:5 d6

ATORN SC HSC end mill - G/CFRP diameter 3.0 mm W0 degrees L:50x12 t:5 d6

1003160071 ATORN SC HSC end mill - G/CFRP diameter 3.0 mm W0 degrees L:50x12 t:5 d6
Item no: 1003160 071

Online price:

Available in 4-6 working days.

Application
HSC end mill for machining CFRP/GFRP materials with large flutes and synchronous chip breakers.

Execution
  • Solid carbide ultra-fine grain
  • uncoated
  • Polished surface
  • Straight shank in accordance with DIN 6535 HA

Advantage
  • Large flutes with synchronous chip breakers
  • Continuous cutting, good chip removal
  • Straight grooves, no tensile forces on the workpiece

Notes
You can find detailed information on the usage value of this tool on our online shop.

Brand: ATORN
Cutting material: SC
Surface: Uncoated
Number of cutting edges (Z): 5 PCS
Twist angle: 0°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 3 mm
Cutting edge length: 12 mm
Length: 50 mm
Shank diameter: 6 mm
fz aluminium: 0,2 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 10440665

EAN no.: 4050293439229
