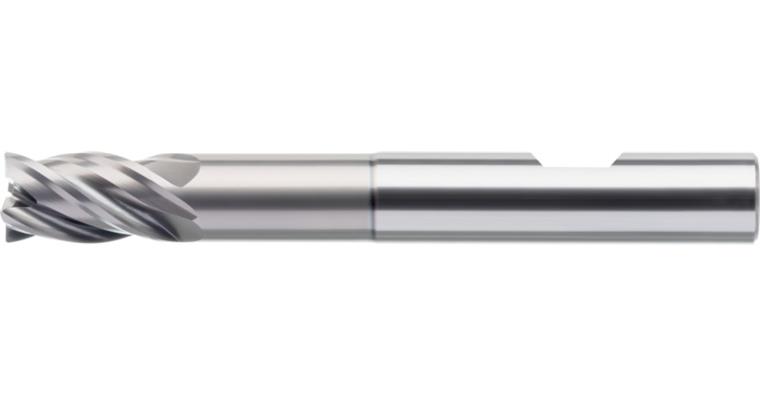

ATORN HPC POWER SC end mill, STEEL, 12.0x18x48x93 mm HB, type N, extra long

ATORN HPC POWER SC end mill, STEEL, 12.0x18x48x93 mm HB, type N, extra long

1005501251 ATORN HPC POWER SC end mill, STEEL, 12.0x18x48x93 mm HB, type N, extra long
Item no: 1005501 251

Online price:

Will be ordered for you

Application
HPC end mill for machining steel and cast iron — low-vibration, multi-functional and high-performance tool for rough machining and finishing up to 2xD.

Execution
  • Solid carbide ultra-fine grain
  • ULTRA high-performance coating
  • Centre cutting
  • Uneven twist angle: 35°/38°
  • Unequal cutting edge pitch
  • With edge protection chamfer
  • With clearance
  • Cutting edge with edge preparation

Advantage
  • Increased material removal rate
  • High level of process reliability up to 2xD
  • Higher feed rates and cutting depths possible
  • Reduces vibrations
  • Ideal for static and dynamic trochoidal milling


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 35° | 38°
Tool holding device: HB parallel shank
Construction length: Long
Cutting edge diameter: 12 mm
Cutting edge length: 18 mm
Clearance length: 48 mm
Length: 93 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 11 mm
Shank diameter: 12 mm
fz steel 1000: 0,09 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 10617274

EAN no.: 4050293410518

Datasheet cutting values
