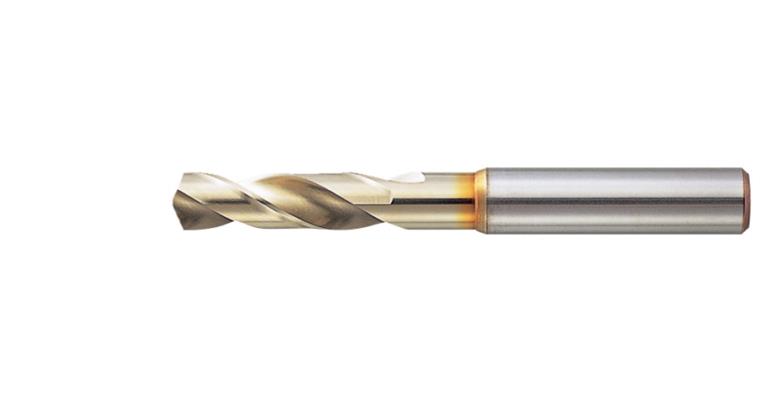

Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 4.7 mm

Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 4.7 mm

Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 4.7 mm
Item no: 1010217 037

Online price:

Available in 6-8 working days.

Application
For reliable and cost-effective drilling on CNC machines, universal application up to 1200 N/mm².

Execution
  • Straight shank
  • Right-cutting
  • Helix angle 31–32°
  • Thinned chisel edge

Notes
Use only high-precision tool holders.

Brand: NACHI
Min. f in special alloys: 0,070 mm/r
Material to be processed: Universal use
Cutting edge diameter: 4,7 mm
Length: 89 mm
Chip flute length: 47 mm
Max. drilling depth (D): 5xD
Angle of the tip: 135 Degree
Cutting material: HSS-PM
Surface: TiCN
Tool holding device: Cylinder shank
Type: SG-ESR
DIN: 338
Coolant supply: External
Number of cutting edges: 2 PCS
Shank diameter: 6 mm
Min. f in non-ferrous metals: 0,180 mm/r
Max. f in non-ferrous metals: 0,180 mm/r
f steel 1000: 0,12 mm/r
Min. f in steel: 0,110 mm/r
Max. f in steel: 0,140 mm/r
Min. f in stainless steel: 0,088 mm/r
Max. f in stainless steel: 0,088 mm/r
Min. f in cast iron: 0,180 mm/r
Max. f in cast iron: 0,180 mm/r
Max. f in special alloys: 0,070 mm/r

Manufacturer part no.: L7574 4,7

Product Datasheet Datasheet cutting values
