Extra-long twist drill bit DIN 1869 type FN HSS ground 11x280 mm

Extra-long twist drill bit DIN 1869 type FN HSS ground 11x280 mm

Extra-long twist drill bit DIN 1869 type FN HSS ground 11x280 mm
Item no: 1010421 147

Online price:

Still in stock: 1

Application
For drilling holes up to approx. 10xD, without chip removal. For steel up to 1000 N/mm², cast iron, aluminium alloys, brass and bronze.

Execution
  • Flat flute profile
  • With straight shank
  • Right-cutting
  • Tip angle 130°
  • Cone polished section with point thinning in accordance with DIN 1412 shape A
  • Flat wide chip grooves, rounded back edges
  • HSS, ground

Notes
The flat flute profile allows extremely deep drilling and ensures sufficient coolant supply.

Brand: HARTNER
Material to be processed: Steel | Grey cast iron
Cutting edge diameter: 11 mm
Length: 280 mm
Chip flute length: 195 mm
Max. drilling depth (D): 10xD
Angle of the tip: 130 Degree
Cutting material: HSS
Surface: Uncoated
Tool holding device: Cylinder shank
Type: FN
DIN: 1869
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
Min. f in non-ferrous metals: 0,15 mm/r
Max. f in non-ferrous metals: 0,15 mm/r
f steel 700: 0,17 mm/r
Min. f in steel: 0,17 mm/r
Max. f in steel: 0,17 mm/r
Min. f in stainless steel: 0,08 mm/r
Max. f in stainless steel: 0,08 mm/r
Min. f in cast iron: 0,14 mm/r
Max. f in cast iron: 0,14 mm/r

Manufacturer part no.: 81440 11

EAN no.: 4031096097502

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Short twist drill bit DIN 338 type H HSS, ground 1.1 mm
    8,22 €
  • ATORN twist drill bit HSS type N DIN 340 2.1 mm x 85 mm x 56 mm, 118°
    2,56 €
  • ATORN SC radius cutter short TiAlSiN 12x14x83 mm radius 6 mm
    114,40 €
  • Metal circular saw blade combi-hole tooth type BW 220 teeth HSS 275x2.5x32 mm
    155,66 €
  • LIZZARD Halter DCLNL 2020 X12A IK kurz für Wendeschneidplatte CN.. 1204
    168,85 €
  • LIZZARD Halter DCLNR 2020 K12A IK lang für Wendeschneidplatte CN.. 1204
    184,63 €
  • LIZZARD Halter DDJNL 2020 X15A IK kurz für Wendeschneidplatte DN.. 1506
    168,85 €
  • LIZZARD Halter DVJNR 2525 M16A IK lang für Wendeschneidplatte VN.. 1604
    215,60 €
  • LIZZARD Halter SCLCL 1616 H09A IK lang für Wendeschneidplatte CC.. 09T3
    184,63 €
  • ATORN indexable insert, CBN, coated, CNGA 120404-4S, ABC25B/D, with chamfer
    89,10 €

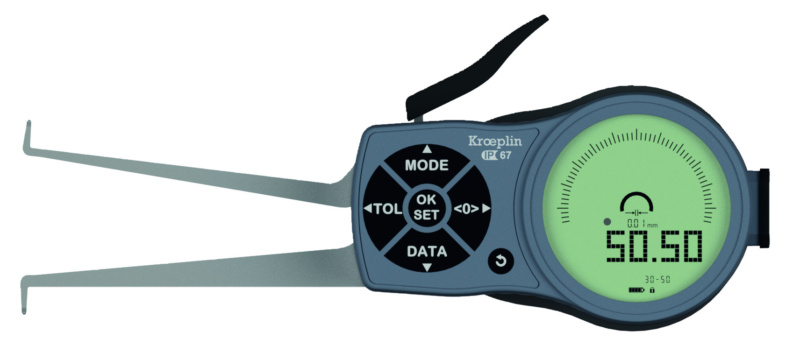

  • Digital internal quick probe deg. of protect. IP 67 type L230 MR 30-50 mm
  •
