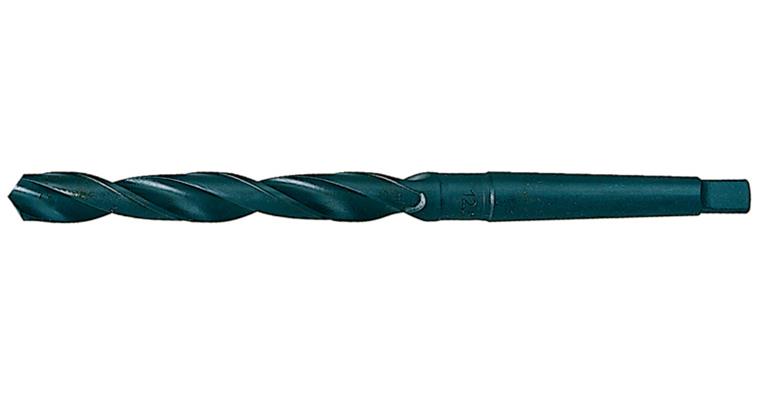

Twist drill bit DIN 345 type N tip angle 118° up to approx. 800N/mm2 HSS 44.0 mm

Twist drill bit DIN 345 type N tip angle 118° up to approx. 800N/mm2 HSS 44.0 mm

Twist drill bit DIN 345 type N tip angle 118° up to approx. 800N/mm2 HSS 44.0 mm
Item no: 1010510 306

Online price:

Available in 4-6 working days.

Application
For materials that can be machined normally such as steel and cast steel, alloyed and unalloyed, up to approx. 800 N/mm² strength, grey cast iron, malleable iron, spheroidal graphite iron, sintered iron, nickel silver, graphite. For short-chipping materials such as aluminium alloys, high-pressure die casting, bronze, brass etc.

Execution
  • Morse taper shank and flat tangs
  • Right-cutting
  • Tip angle 118°
  • HSS
  • Roll forged


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 44 mm
Length: 359 mm
Chip flute length: 210 mm
Angle of the tip: 118 Degree
Cutting material: HSS
Surface: Vaporised
Morse taper size: MK 4
Type: RN
DIN: 345
f steel 700: 0,43 mm/r
Coolant supply: External
Number of cutting edges: 2 PCS
Max. f in cast iron: 0,50 mm/r
Max. f in non-ferrous metals: 0,50 mm/r
Max. f in steel: 0,50 mm/r
Min. f in cast iron: 0,50 mm/r
Min. f in non-ferrous metals: 0,45 mm/r
Min. f in steel: 0,50 mm/r
Shank style: Morse taper
