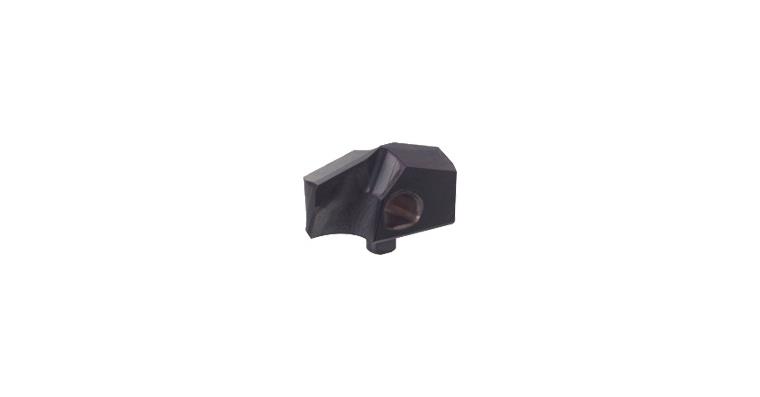

Multiplex HPC pilot plate SC/ALTiN for girder size 110 dia. 11.8 mm

Multiplex HPC pilot plate SC/ALTiN for girder size 110 dia. 11.8 mm

Multiplex HPC pilot plate SC/ALTiN for girder size 110 dia. 11.8 mm
Item no: 1010645 103

Online price:

Available in 6-8 working days.

Application
For Multiplex HPC holder art. no. 1010640-1010644.

Delivery
Incl. 1 clamping screw


Brand: HARTNER
Cutting material: SC
Surface: AlTiN
Angle of the tip: 145 Degree
Coolant supply: Internal
Cutting edge diameter: 11,8 mm
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
Height (h): 7,20 mm
Material to be processed: Universal use
Max. Vc in cast iron: 100 m/min
Max. Vc in non-ferrous metals: 150 m/min
Max. Vc in special alloys: 40 m/min
Max. Vc in stainless steel: 55 m/min
Max. Vc in steel: 100 m/min
Min. Vc in cast iron: 60 m/min
Min. Vc in non-ferrous metals: 35 m/min
Min. Vc in special alloy: 25 m/min
Min. Vc in stainless steel: 35 m/min
Min. Vc in steel: 50 m/min
Min./max. Vc in cast iron: 60-100 m/min
Min./max. Vc in non-ferrous metals: 35-150 m/min
Min./max. Vc in special alloys: 25-40 m/min
Min./max. Vc in stainless steel: 35-55 m/min
Min./max. Vc in steel: 50-100 m/min
Point height (l4): 1,90 mm
Size: 110
Suitable for material group H: 3
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 1
Suitable for material group P: 1
Suitable for material group S: 1
Thickness of cutting edge: 4,50 mm

Manufacturer part no.: 86721 11,800

EAN no.: 4031096233757
