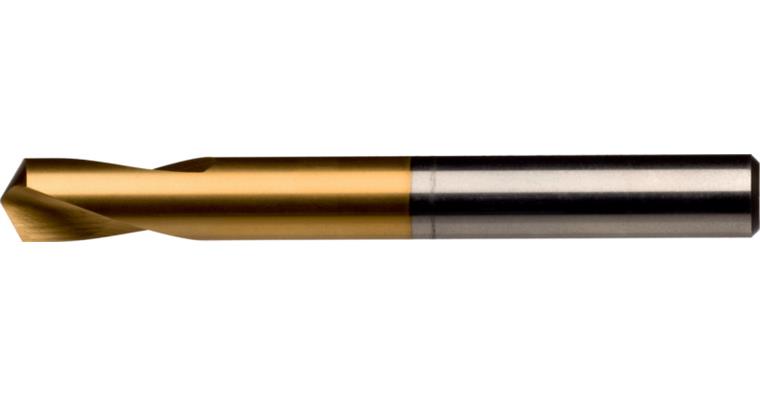

ATORN NC spotting drill HSSE TiN 120°, 16.0 mm x 115 mm HA

ATORN NC spotting drill HSSE TiN 120°, 16.0 mm x 115 mm HA

ATORN NC spotting drill HSSE TiN 120°, 16.0 mm x 115 mm HA
Item no: 1010892 416

Online price:

Available in 4-6 working days.

Application
For NC spot drilling on conventional and CNC machines.

Execution
spiral-fluted design with relief grinding

Advantage
  • Kurze Bauform mit exaktem Spitzenanschliff und Querschneide, sorgen für ein formgenaues und prozesssicheres Anbohren
  • short design with precise point geometry and chisel edge ensure form-true and reliable spot drilling
  • 120° NC spotting drill ensures precise centring (deflection of drill is minimised)
  • TiN coating for increased service life requirements


Brand: ATORN
Material to be processed: Steel | Stainless steel | Cast metal | Titanium alloy | Aluminium | Plastic
Angle of the tip: 120 Degree
Cutting material: HSSE
Surface: TiN
Tool holding device: HA parallel shank
Cutting edge diameter: 16 mm
Cutting edge length: 35 mm
Length: 115 mm
f steel 1000: 0,09 mm/r

ATORN-No.: 10440145

EAN no.: 4050293012934

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • ATORN NC spotting drill HSSE 90°, uncoated, 5.0 mm x 60 mm HA
  •
    Fibre disc ceramic stearate for ALU XF733, dia. 125 mm, grain 36
    2,73 €

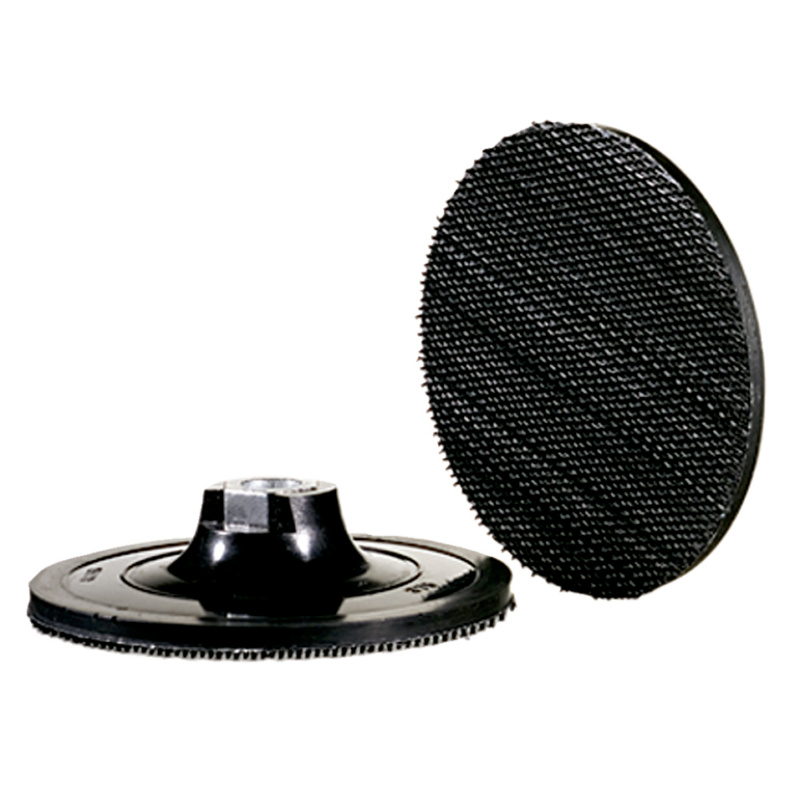

  • Hook-and-loop adh. back. pad dia. 112 mm
  •
    Attachment chain EN 818 prEN 1677, max. 3000kg, four-str. dia. 6mm, length 2m
  •
    Straight output for ASW 14-6/14-10/14-14 up to max. 9.9 Nm
  •

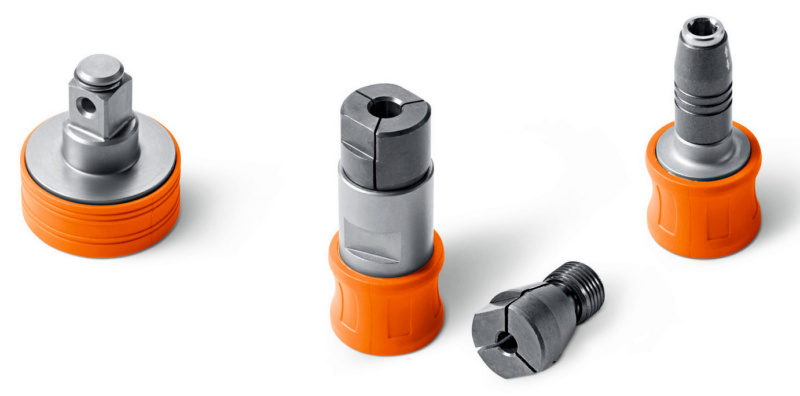

    Quick-IN-Zubehör Set Metal
  •
