Solid carbide NC spotting drill tip angle 142° solid carbide + TiAlN 12 mm

Versions

Item no: 1010901 108

Online price:

Catalogue price: You save:

Still in stock: 7

Min. order quantity: 1

Application
Drilling and countersinking on NC machines in cast iron, malleable iron, non-ferrous light metals, abrasive plastics.

Execution

Tip angle 142°, right-cutting, spiral-fluted
From dia. 6 mm with straight shank in line with DIN 6535 HA
From dia. 6 mm with straight shank in line with DIN 6535 HB
Right-cutting
Spiral-fluted
Solid carbide ultra-fine grain/TiAlN-coated

Brand: LIZZARD
Material to be processed: Universal use
Cutting material: SC
Angle of the tip: 142 Degree
Cutting edge diameter: 12 mm
Length: 70 mm
Shank diameter: 12 mm
Chip flute length: 24 mm
Surface: TiAlN
Tool holding device: HB parallel shank
Cutting edge length: 24 mm
f steel 1000: 0,13 mm/r

EAN no.: 4024496008070

Product Datasheet Datasheet cutting values

Versions

Keywords:

[Text nicht gefunden]

ATORN centre drill bit HSSE extra-long 4.0 mm x 10 mm x 200 mm

63,02 €
ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°

1,80 €
Twist drill bit HSS-E-Co8 AG coat. DIN 1869-1 tip 118° 15xD dia. 5.8x140x205 mm

70,88 €
Solid carbide NC spotting drill tip angle 142° solid carbide + TiAlN 10 mm
Solid carbide NC spotting drill tip angle 120° solid carbide + TiAlN 16 mm
Solid carbide NC spotting drill tip angle 90° solid carbide + TiAlN 5 mm

46,12 €

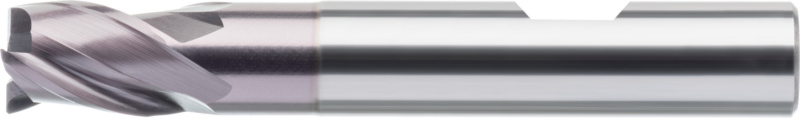

ATORN HPC POWER SC groove end mill, UNI, 4.0 x 5 x 8 x 54 mm HA, type N, short

22,10 €

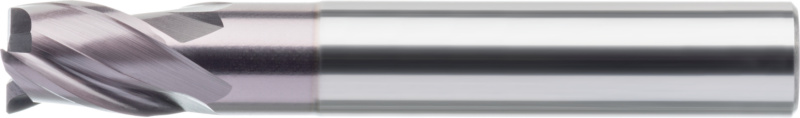

ATORN HPC POWER SC groove end mill, UNI, 4.0 x 5 x 8 x 54 mm HB, type N, short
