NC spotting drill, solid carbide 120° TiAlSiN, diameter 5 mm x 62 mm HA shaft

NC spotting drill, solid carbide 120° TiAlSiN, diameter 5 mm x 62 mm HA shaft

NC spotting drill, solid carbide 120° TiAlSiN, diameter 5 mm x 62 mm HA shaft
Item no: 1010906 405

Online price:

Available in 5-7 working days.

Application
For 120° spot drilling for the following twist drills on CNC machines.

Execution
Spiral-fluted design

Advantage
  • Short design with precise point geometry and chisel edge ensure form-true and process-reliable spot drilling
  • The follow-on tool does not run off centre
  • Precise gauge thanks to special point thinning of the chisel edge
  • Maximal service life thanks to innovative coating

Notes
Diameter less than 6 mm with HA shaft

Brand: ATORN
Material to be processed: Universal use
Angle of the tip: 120 Degree
Cutting material: SC
Surface: TiAlSiN
Tool holding device: HA parallel shank
Cutting edge diameter: 5 mm
Cutting edge length: 14 mm
Length: 62 mm
f steel 1300: 0,12 mm/r

ATORN-No.: 10916135

EAN no.: 4050293695502

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Short VA twist drill bit DIN 338 type IS HSS-E, ground 4.4 mm
  •
    Short VA twist drill bit DIN 338 type IS HSS-E, ground 5.5 mm
  •
    ATORN NC spotting drill HSSE 120°, uncoated, 16.0 mm x 115 mm HA
  •
    NC spotting drill, solid carbide, 90° diameter 4 mm x 55 mm HA shaft
    23,10 €
  • NC spotting drill, solid carbide, 90° TiAlSiN, diameter 4 mm x 55 mm HA shaft
  •
    NC spotting drill, solid carbide, 90° TiAlSiN, diameter 10 mm x 89 mm HB shaft
  •
    NC spotting drill, solid carbide 142° TiAlSiN, diameter 4 mm x 55 mm HA shaft
  •
    NC spotting drill, solid carbide 142° TiAlSiN, diameter 8 mm x 79 mm HB shaft
  •
    NC spotting drill, sol. carb. 90° TiAlSiN, diameter 6 mm x 140 mm HB shaft, long
  •

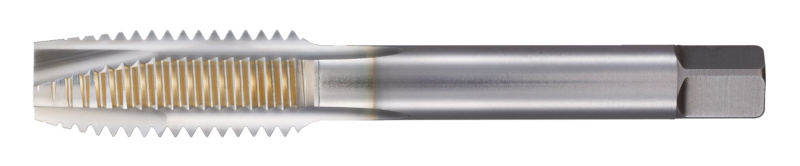

    Through hole screw tap SGPO (PM) DIN371 shape B 3xD HSS-PM-SG M 8
  •
