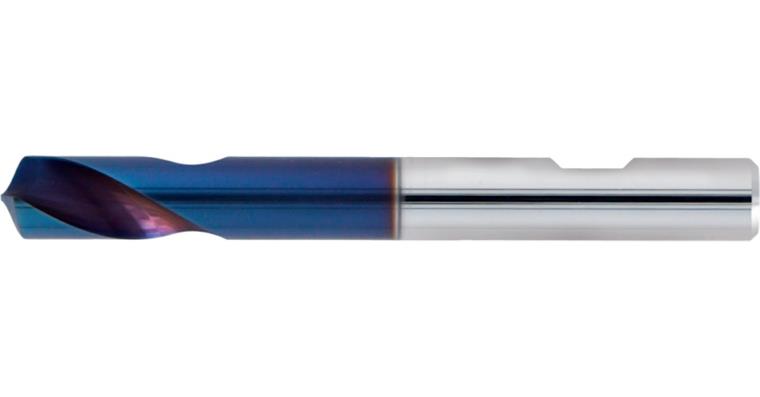

NC spotting drill, solid carbide 142° TiAlSiN, diameter 4 mm x 55 mm HA shaft

NC spotting drill, solid carbide 142° TiAlSiN, diameter 4 mm x 55 mm HA shaft

NC spotting drill, solid carbide 142° TiAlSiN, diameter 4 mm x 55 mm HA shaft
Item no: 1010907 204

Online price:

Still in stock: 8

Application
For 142° spot drilling for the following twist drills on CNC machines.

Execution
Spiral-fluted design

Advantage
  • Short design with precise point geometry and chisel edge ensure form-true and process-reliable spot drilling
  • The follow-on tool does not run off centre
  • Precise gauge thanks to special point thinning of the chisel edge
  • Maximal service life thanks to innovative coating

Notes
Diameter less than 6 mm with HA shaft

Brand: ATORN
Material to be processed: Universal use
Angle of the tip: 142 Degree
Cutting material: SC
Surface: TiAlSiN
Tool holding device: HA parallel shank
Cutting edge diameter: 4 mm
Cutting edge length: 12 mm
Length: 55 mm
f steel 1300: 0,11 mm/r

ATORN-No.: 10916164

EAN no.: 4050293695793

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Short VA twist drill bit DIN 338 type IS HSS-E, ground 2.1 mm
  •
    Short VA twist drill bit DIN 338 type IS HSS-E, ground 6.2 mm
  •
    Short VA twist drill bit DIN 338 type IS HSS-E, ground 6.3 mm
  •
    NC spotting drill, solid carbide, 90° TiAlSiN, diameter 4 mm x 55 mm HA shaft
  •
    NC spotting drill, solid carbide, 90° TiAlSiN, diameter 8 mm x 79 mm HB shaft
  •
    NC spotting drill, sol. carb. 90° TiAlSiN, diameter 20 mm x 200 mm HB shaft, long
  •
    NC spotting drill, sol. carbide 120° TiAlSiN, dia. 20 mm x 200 mm HB shaft, long
  •

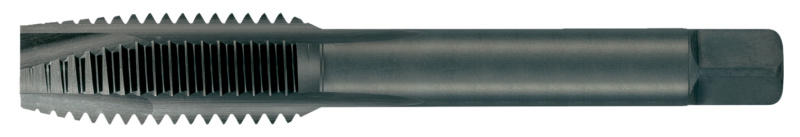

    Through hole screw tap Hyper Z Series DIN 371 shape B 2xD HSS-E M 8
  •
    SC radius cutter TiAlN 30° normal HB shank T=2 dia. 4 mm
    38,23 €
  • Internal recessing cutter shape H HSS-H B 06, for groove width 1.1 mm
  •
    1/4 inch screwdriver bit chromium-vanadium steel slotted 1.2 x 6.5 mm
  •

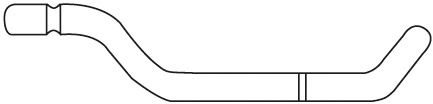

    Replacement blade B shank dia. 2.6 mm shape B60 HSS left for cross holes
